Simpson Strong-Tie THD50600WHMG THD 1/2 x 6 Washer Head in MG- Pak 15 (1/each)
$82.44

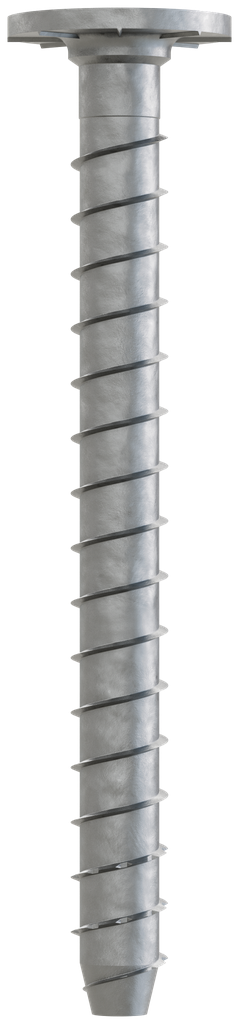

The Titen HD® heavy-duty screw anchor from Simpson Strong-Tie is designed to provide superior performance in various anchoring applications. With its 1/2-inch by 6-inch size, this anchor is qualified for both cracked and uncracked concrete, ensuring reliability under static, wind, and seismic loading conditions. The washer head design accommodates applications that are not compatible with hex heads, while the standard fractional sizes simplify the installation process, eliminating the need for special drill bits. Each box includes a 1/2-inch socket adapter and two T-drive bits, making it convenient for users to complete their projects. Additionally, this mechanically galvanized anchor is suitable for exterior use and can be easily removed, making it perfect for temporary installations or situations where fixtures may need to be relocated.
Description
The Simpson Strong-Tie® Titen HD® with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head’s low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor’s 6-lobe drive eases driving and is less prone to stripping.
Additional information
| Weight | 6.415 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 1.375 in |
| Size | 1/2 in. x 6 in. |
