Simpson Strong-Tie THDB62100WHMG THD 5/8 x 10 Washer Head in MG- Pak 10 (1/each)
$144.89
The Titen HD® heavy-duty screw anchor is engineered for robust performance in a variety of applications, making it an essential choice for both cracked and uncracked concrete in conditions involving static, wind, and seismic loads. Each box comes complete with a 1/2-in. socket adapter and two T-drive bits, enhancing installation convenience since it does not require specialized drill bits; standard-sized ANSI tolerance bits will suffice. Its washer head design facilitates applications where hex heads may be impractical, while also allowing for temporary anchoring solutions, making it easy to relocate fixtures as needed. This mechanically galvanized anchor is not only code-listed for exterior use but also conforms to ICC-ES AC193 and ACI 355.2 standards, ensuring reliability and safety in demanding environments.
Description

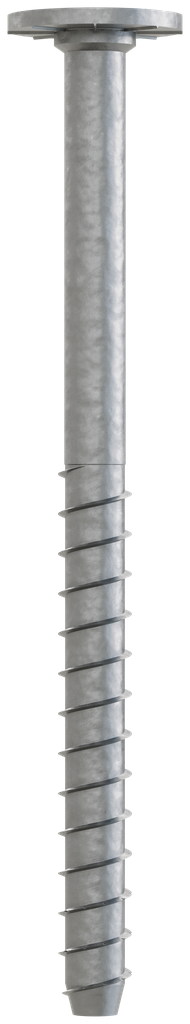

The Simpson Strong-Tie® Titen HD® with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head’s low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor’s 6-lobe drive eases driving and is less prone to stripping.
Additional information
| Weight | 10.229 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 1.75 in |
| Size | 5/8 in. x 10 in. |
