Simpson Strong-Tie THDB62600WHMG THD 5/8 x 6 Washer Head in MG- Pak 10 (1/each)
$90.61
Built for strength and versatility, the Titen HD® heavy-duty screw anchor by Simpson Strong-Tie is designed to withstand various conditions, making it ideal for both static and dynamic applications in cracked and uncracked concrete. The innovative washer head feature allows for installations in scenarios where traditional hex heads may be incompatible, enhancing its usability. This anchor is conveniently removable, enabling temporary anchoring or repositioning of fixtures as needed, which is a significant advantage in dynamic environments. With its mechanical galvanization, it is approved for exterior use, ensuring durability against the elements. Each box comes ready-to-use with a 1/2-inch socket adapter and two T-drive bits, simplifying installation with standard drill bits and matching the hole size to the anchor size for added precision. Please note that this product may expose users to wood dust, which the State of California recognizes as a cancer risk. For more information, visit the provided safety resources.
Description

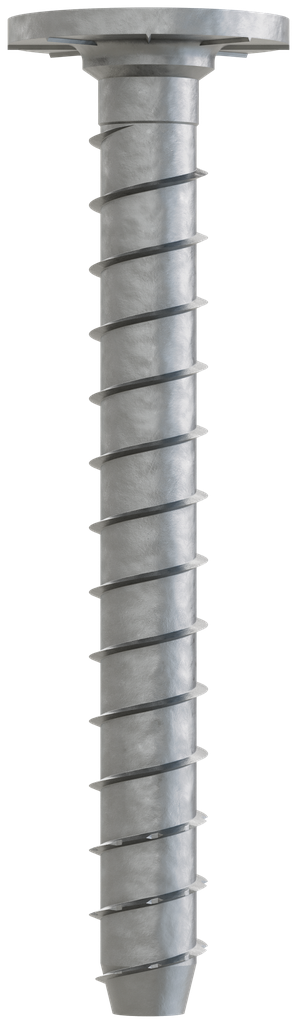

The Simpson Strong-Tie® Titen HD® with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head’s low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor’s 6-lobe drive eases driving and is less prone to stripping.
Additional information
| Weight | 6.623 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 1.75 in |
| Anchor Size | 5/8 in. x 6 in. |
