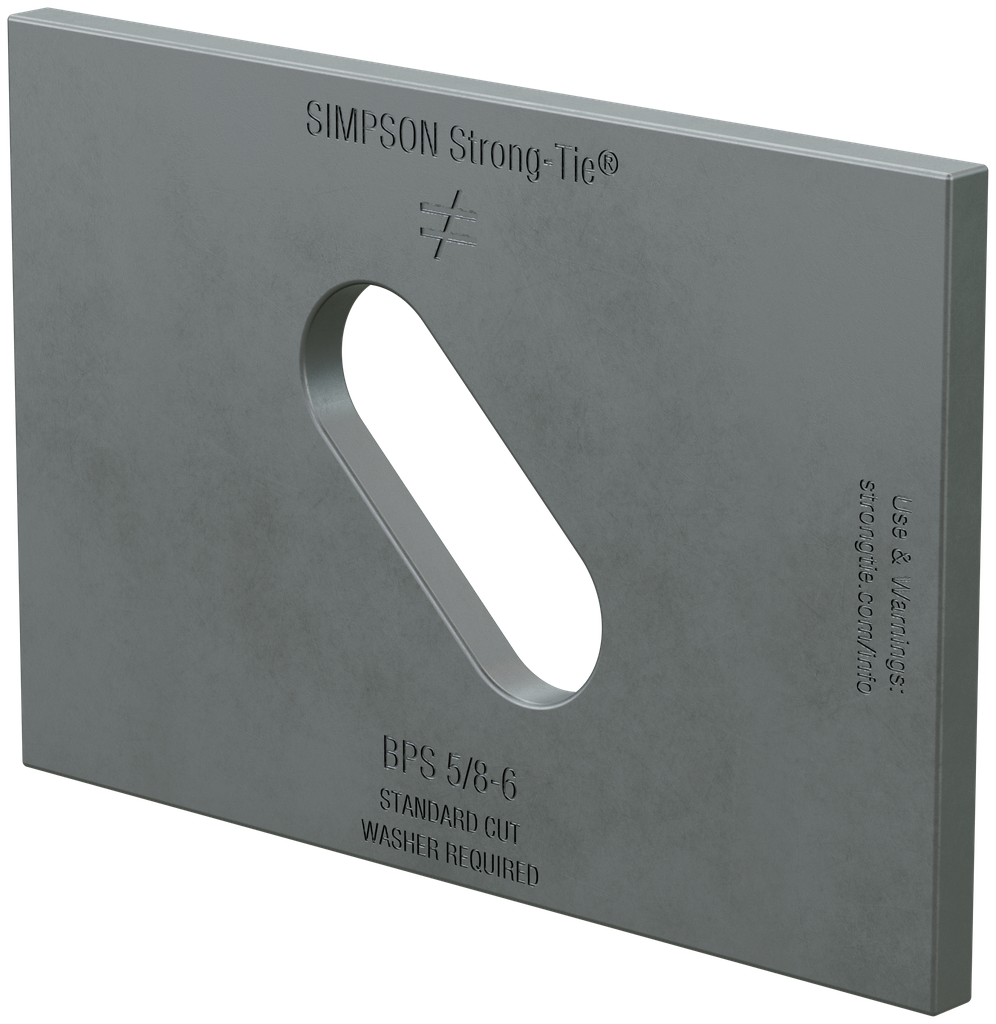

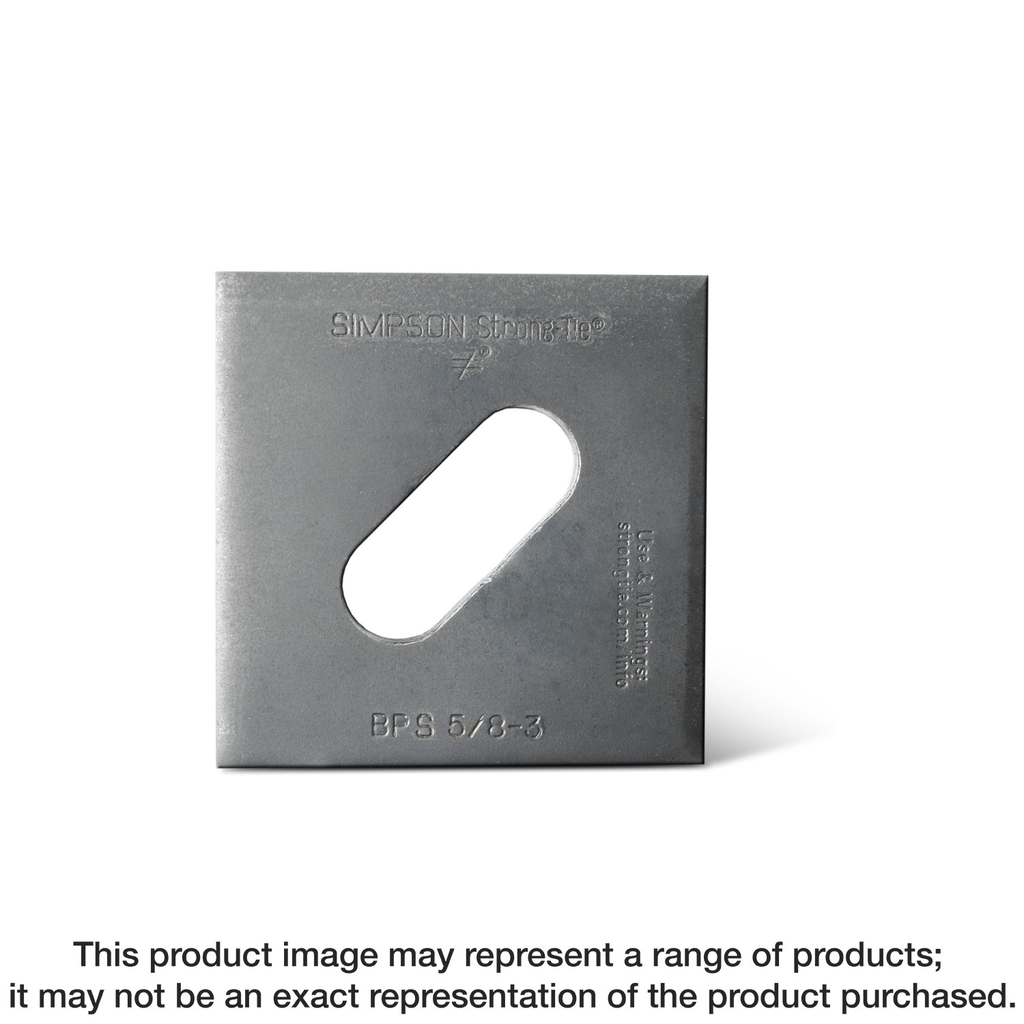

SLOTTED BEARING PLATE FOR 6X WALLS
$7.29
Manufactured by Simpson Strong-Tie, this slotted bearing plate is an essential component designed to enhance structural integrity in building projects. With dimensions of 3 inches by 4-1/2 inches and crafted from durable 3-gauge steel, it provides robustness necessary for supporting 2×4 and 2×6 walls while adhering to the latest building codes. The thoughtful design incorporates a slotted hole, offering adjustability for bolts that may not be perfectly centered on the sill plate, thereby enhancing flexibility during installation. This uncoated steel construction not only boosts the plate’s durability but also simplifies the integration into various structural applications, making it a reliable choice for contractors and builders.
Description
Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at these critical connections. Bearing plates are typically used on foundation anchor bolts in place of cut washers.
Additional information
| Weight | 0.91 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Plate Dimensions | 3 in. x 4-1/2 in. |
| Bolt Diameter | 5/8 in. |
