Steel Ledger Connector ICF Form 8″ Legs
$21.07

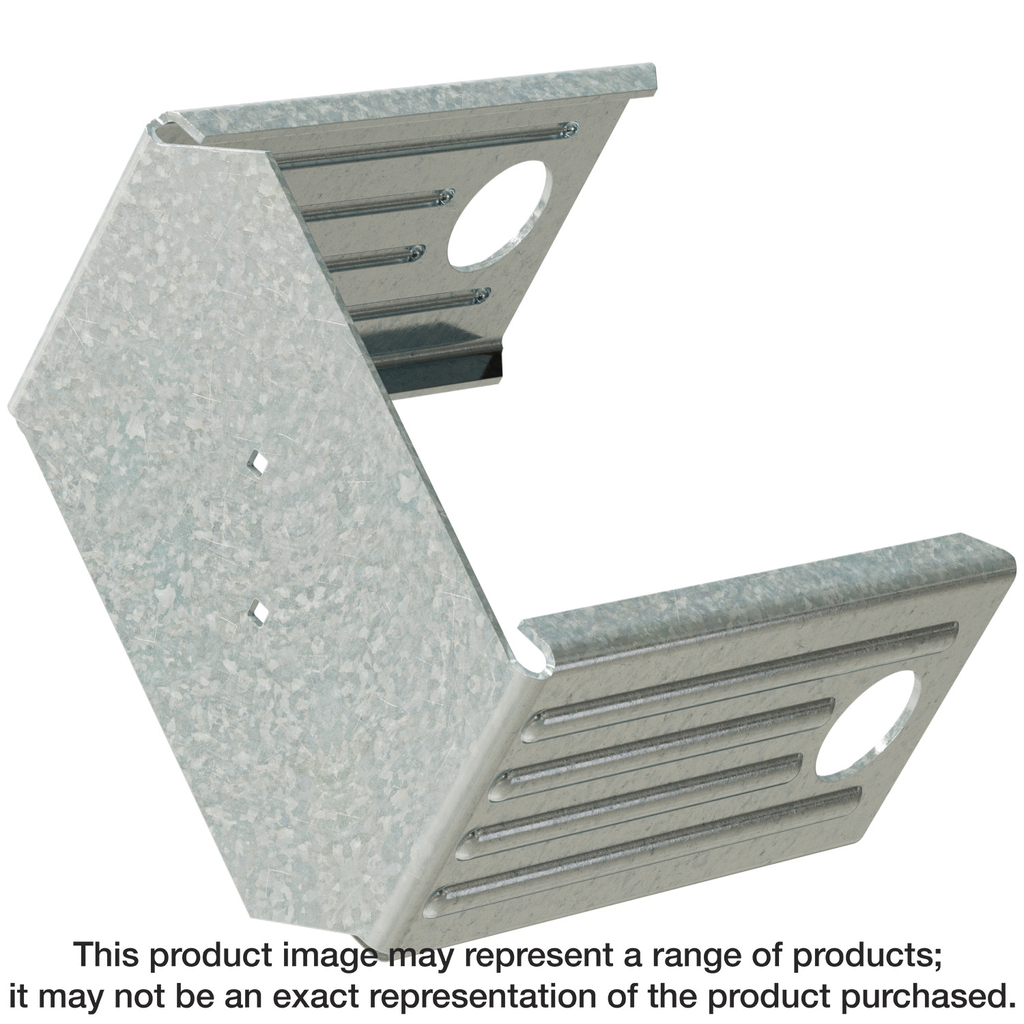

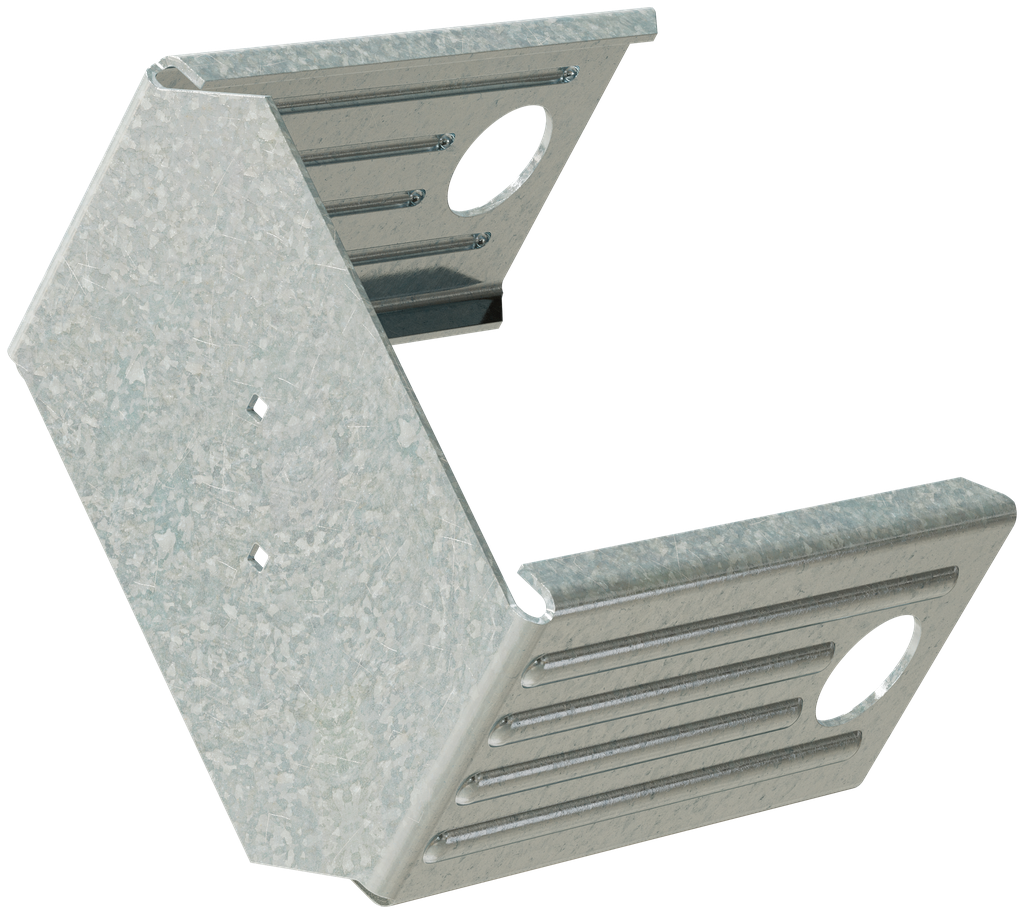

Engineered for strength and stability, the Simpson Strong-Tie ICFVL® Ledger Connector features robust 8-inch legs that provide added stiffness through thoughtful embossments. Constructed from durable 14-gauge steel and galvanized for enhanced corrosion resistance, this connector is designed to accommodate wall forms of up to 4 1/2 inches thick, making it an essential component for insulated concrete form (ICF) construction. The innovative design includes two diamond-shaped holes that facilitate screw installation, ensuring that the connector remains securely in place during the concrete pour and aligns perfectly during installation, while also allowing for easy removal of center screws prior to ledger installation. This ledger connector is not only practical but also enhances the overall integrity of your building project.
Description
The ICFVL ledger connector system is engineered to meet the challenges of mounting wood or steel ledgers to insulated concrete form (ICF) walls. The ICFVL is designed to provide both vertical and lateral in-plane performance. The system offers many benefits over traditional anchor bolting, including better on-center spacing in most cases, faster installation and no protrusions. The embedded legs of the ICFVL are embossed for additional stiffness, and the hole enables concrete to flow through and around the connector. The exposed flange on the face of the ICF provides a structural surface for mounting a wood ledger. Note: For wood ledger applications, the ICFVL-W or ICFVL-CW is required (sold separately).
Additional information
| Weight | 2.12 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Leg Length | 8 in |
| Depth | 3.5 in |
