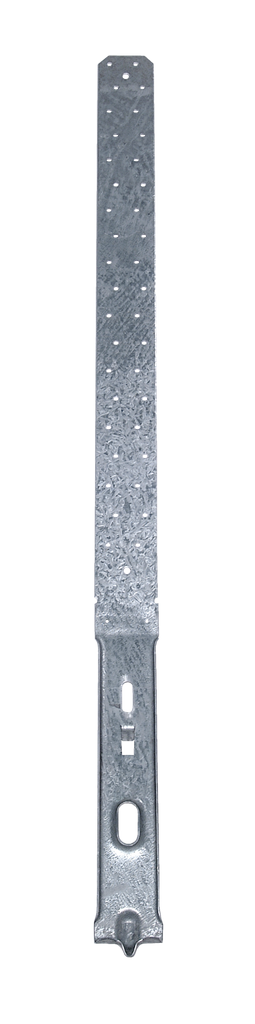

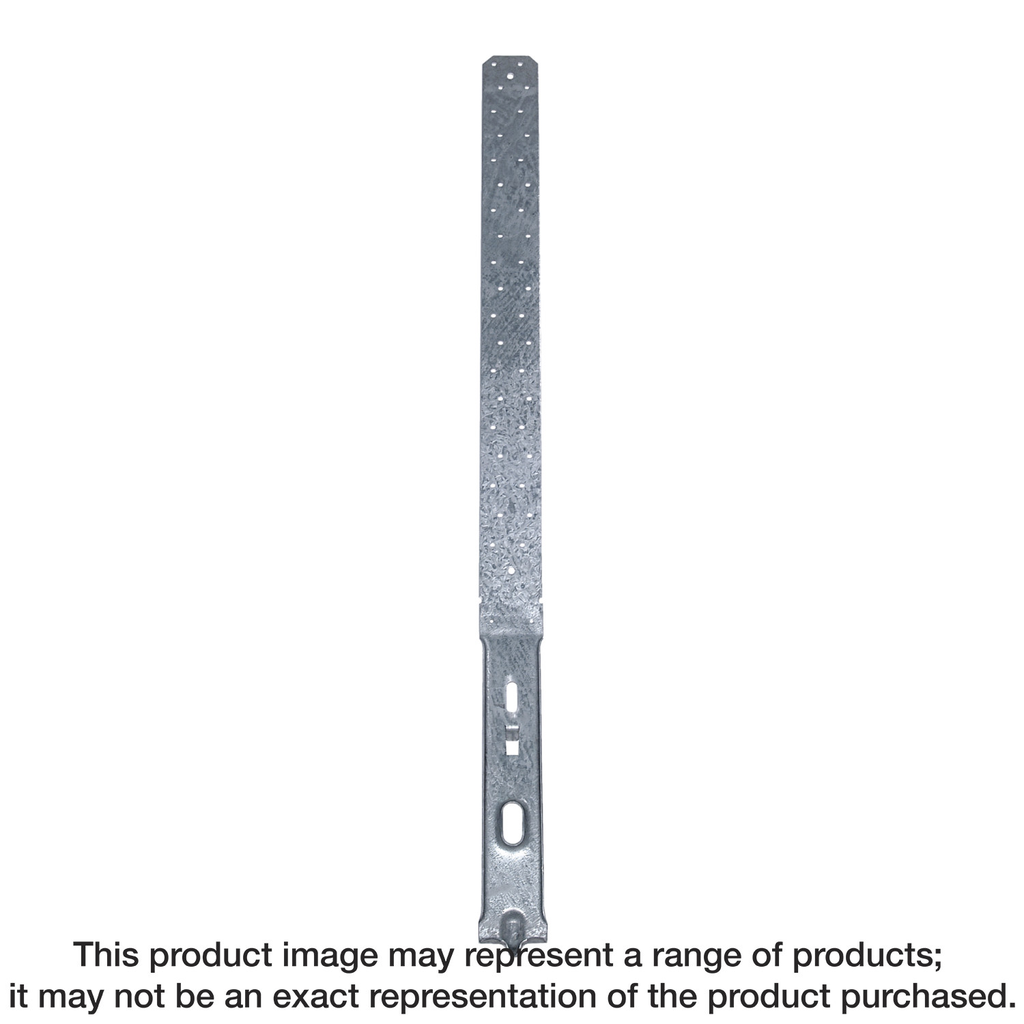

STRAP TIE HOLDOWN
$22.84
Engineered for robust structural support, this holdown strap from Simpson Strong-Tie is made from durable 12-gauge galvanized steel, offering exceptional corrosion resistance. Its innovative design features slots positioned below the embedment line, promoting a stronger front-to-back concrete bond while reducing the risk of spalling. The countersunk strap nail slots facilitate a smoother finish with a lower nail head profile, enhancing overall aesthetic and functional quality. Additionally, the nailing pattern is specifically designed to accommodate edges of double 2x lumber, making this holdown an ideal choice for a secure and reliable construction assembly.
Description
The STHD is an embedded strap-tie holdown offering high load capacity and a staggered nail pattern to help minimize splitting. The STHD incorporates many features that aid correct installation and improve performance. When installed on the forms with the StrapMate® strap holder the unique design of the STHD delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.
Additional information
| Weight | 3.019 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3 in |
| Length | 24-5/8 in. |
