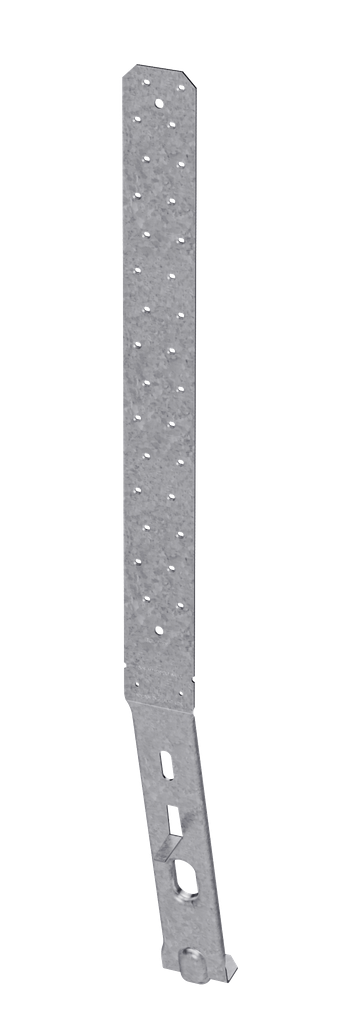

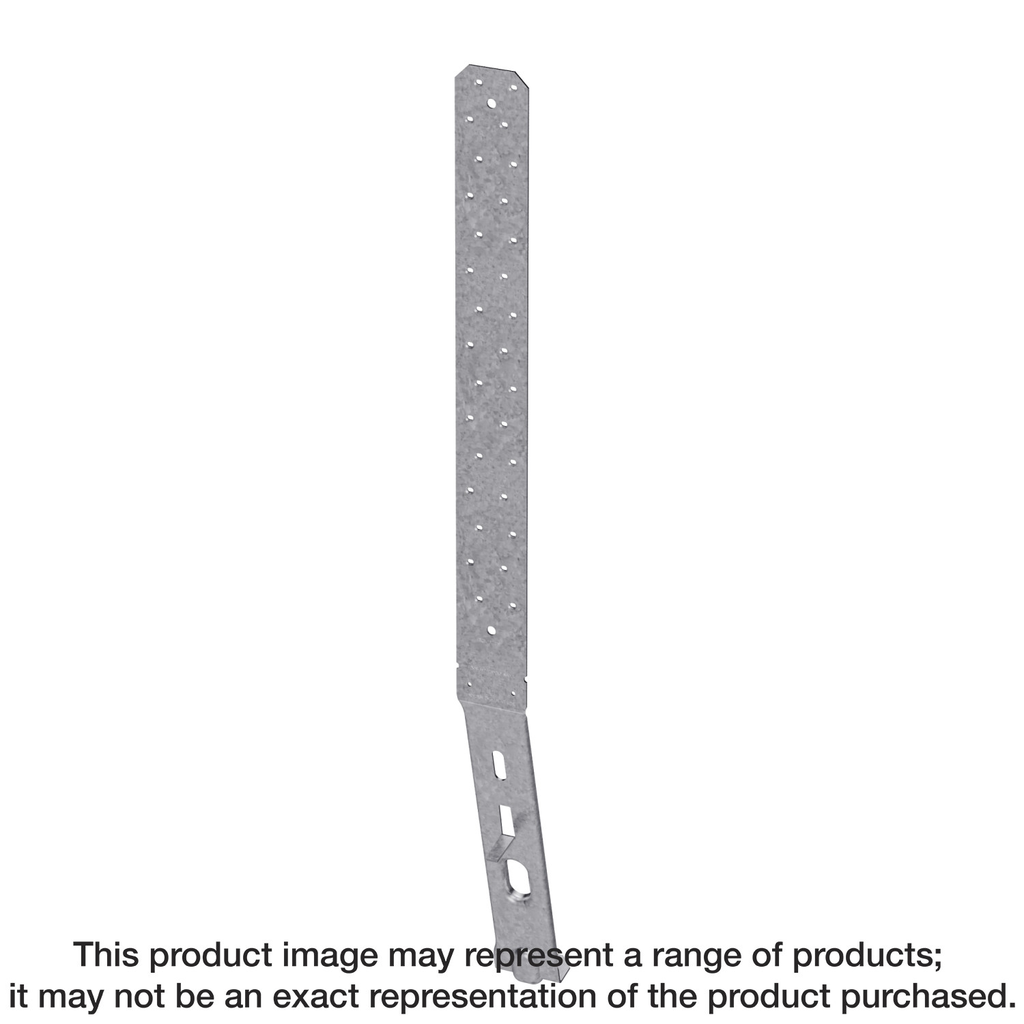

STRAP TIE HOLDOWN
$28.67
Constructed from durable 12-gauge steel, the STHD strap-tie holdown by Simpson Strong-Tie provides robust support for various framing applications. Its galvanized finish ensures enhanced corrosion resistance, making it suitable for both residential and commercial projects. Featuring countersunk nail slots, this holdown supports a lower nail head profile while allowing for easy nailing along the edges of double 2x’s. Additionally, the strategically designed slots below the embedment line promote a stronger front-to-back concrete bond, helping reduce the risk of spalling and enhancing structural integrity.
Description
The STHD is an embedded strap-tie holdown offering high load capacity and a staggered nail pattern to help minimize splitting. The STHD incorporates many features that aid correct installation and improve performance. When installed on the forms with the StrapMate® strap holder the unique design of the STHD delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.
Additional information
| Weight | 3.449 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3 in |
| Length | 26-1/8 in. |
