STRAP TIE HOLDOWN
$35.73

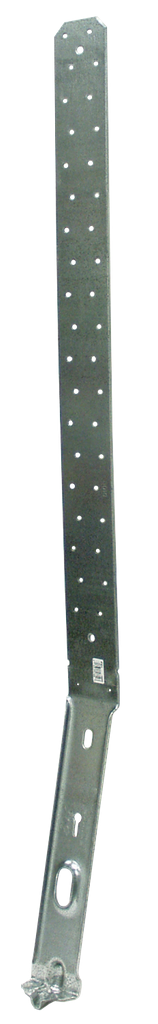

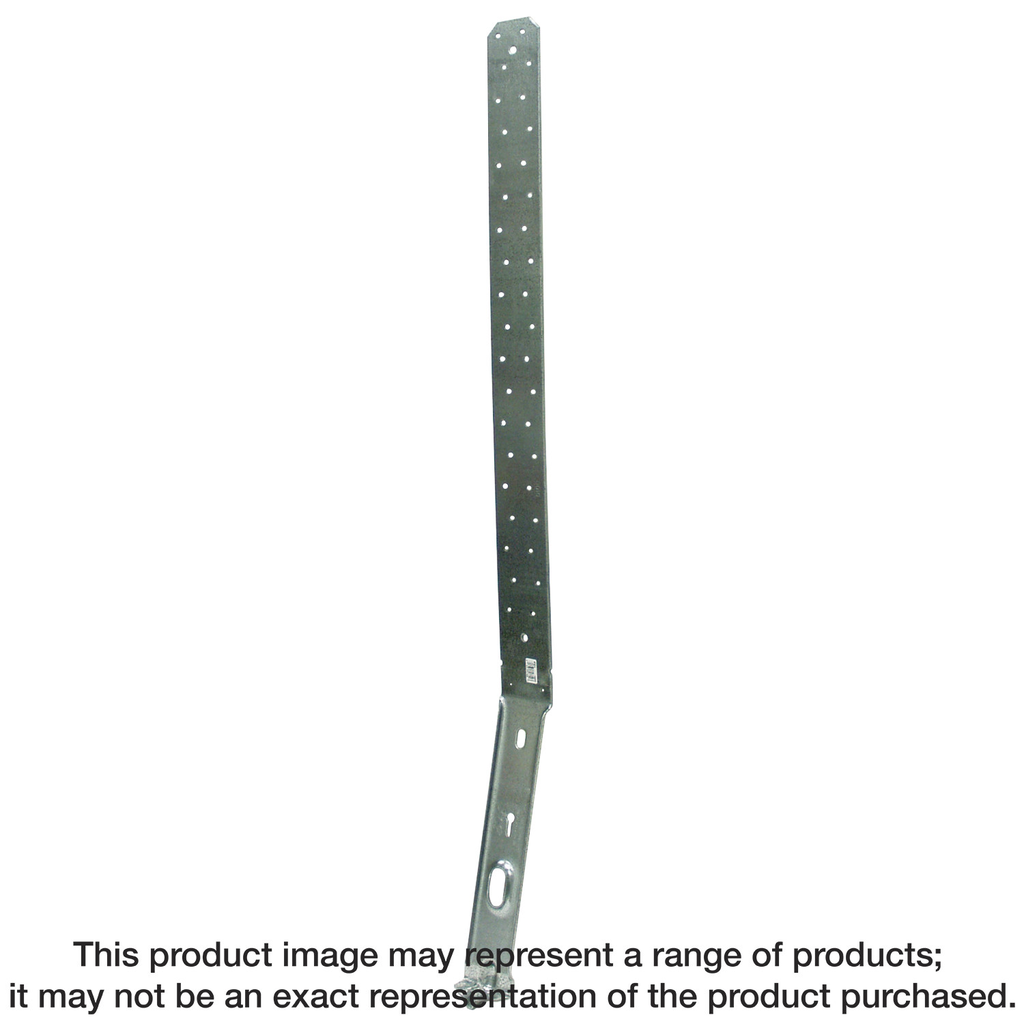

Engineered for strength and durability, the Simpson Strong-Tie STHD 39-5/8 in. 12-Gauge Galvanized Rim-Joist Strap-Tie Holdown is an essential component for secure fastening in framed structures. Constructed from robust 12-gauge galvanized steel, this strap-tie offers exceptional resistance to corrosion, ensuring reliability in various environments. Its innovative nailing pattern accommodates easy attachment to the edges of double 2x lumber, while the countersunk nail slots create a sleek, low-profile finish that improves aesthetics and structural integrity. With the capability to manage clear spans up to 17 inches without compromising on strap nailing, this holdown is designed to enhance your construction projects by ensuring effective concrete bonding while minimizing the risk of spalling.
Description
The STHD is an embedded strap-tie holdown offering high load capacity and a staggered nail pattern to help minimize splitting. The STHD incorporates many features that aid correct installation and improve performance. When installed on the forms with the StrapMate® strap holder the unique design of the STHD delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.
Additional information
| Weight | 4.616 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 39-5/8 in. |
| Depth | 3 in |
