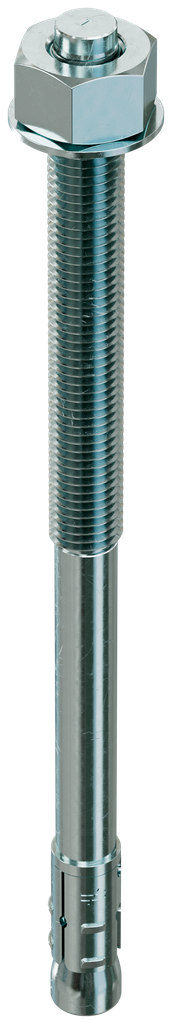

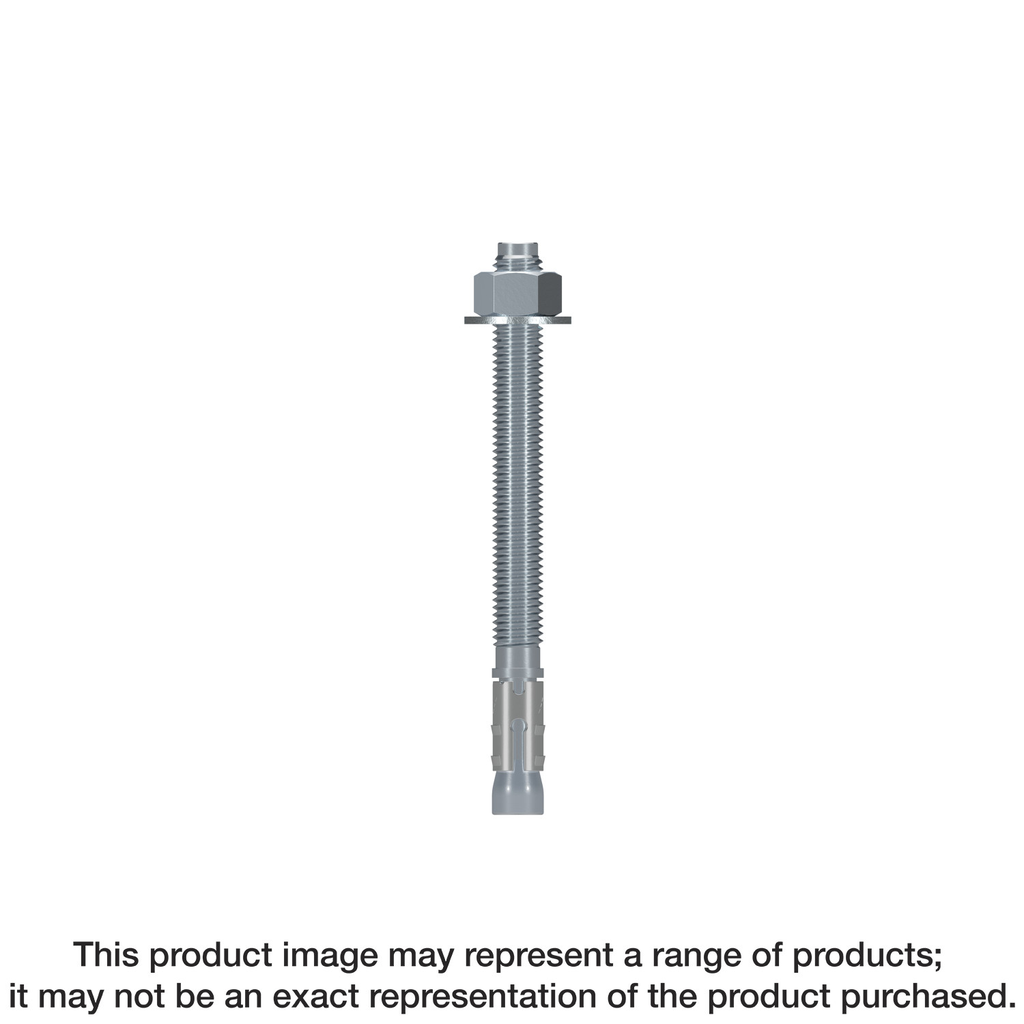

STRONG-BOLT 2 ANCH 3/4 X 12 – PAK 5
$29.33
Engineered for superior performance, the Strong-Bolt® 2 Wedge Anchor by Simpson Strong-Tie is designed for use in a variety of applications, including horizontal, vertical, and overhead installations. Qualified to handle both static and seismic loading conditions, it meets the stringent requirements outlined in ACI355.2 and AC193, making it suitable for seismic design categories A through F. The anchor features a chamfered top that helps prevent mushrooming during installation, ensuring a smooth and efficient process. Constructed from durable zinc-plated carbon steel, this product is built to last and withstand harsh conditions, providing reliable anchoring solutions for critical structural needs.
Description
The Simpson Strong-Tie® Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 is available in zinc-plated carbon steel, mechanically galvanized carbon steel, and Type 304 and Type 316 stainless steel.
Additional information
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 1.469 in |
| Size | 3/4 in. x 12 in. |
