STUD PLATE
$2.04
Engineered for optimal performance and long-lasting durability, this stud-plate tie from Simpson Strong-Tie is a key component for reliable construction and retrofitting projects. Crafted from 20-gauge steel, it boasts a galvanized finish for enhanced corrosion resistance, making it ideal for both residential and commercial applications. The design features strategic embossments that significantly strengthen the connection between the stud and plate, providing added assurance against wind and seismic forces. Whether you’re working on a new build or a retrofit, this versatile tie can be installed at any stage, ensuring superior stability and safety.
Description

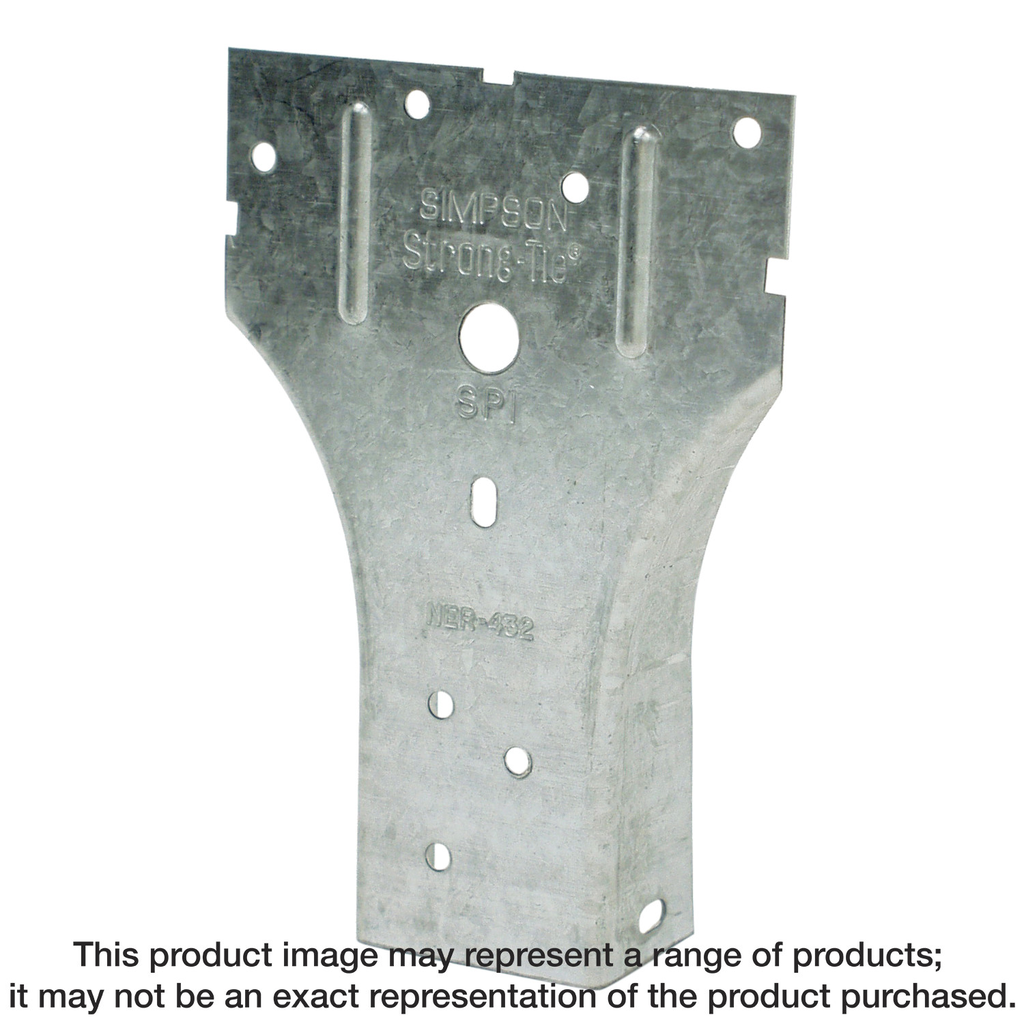

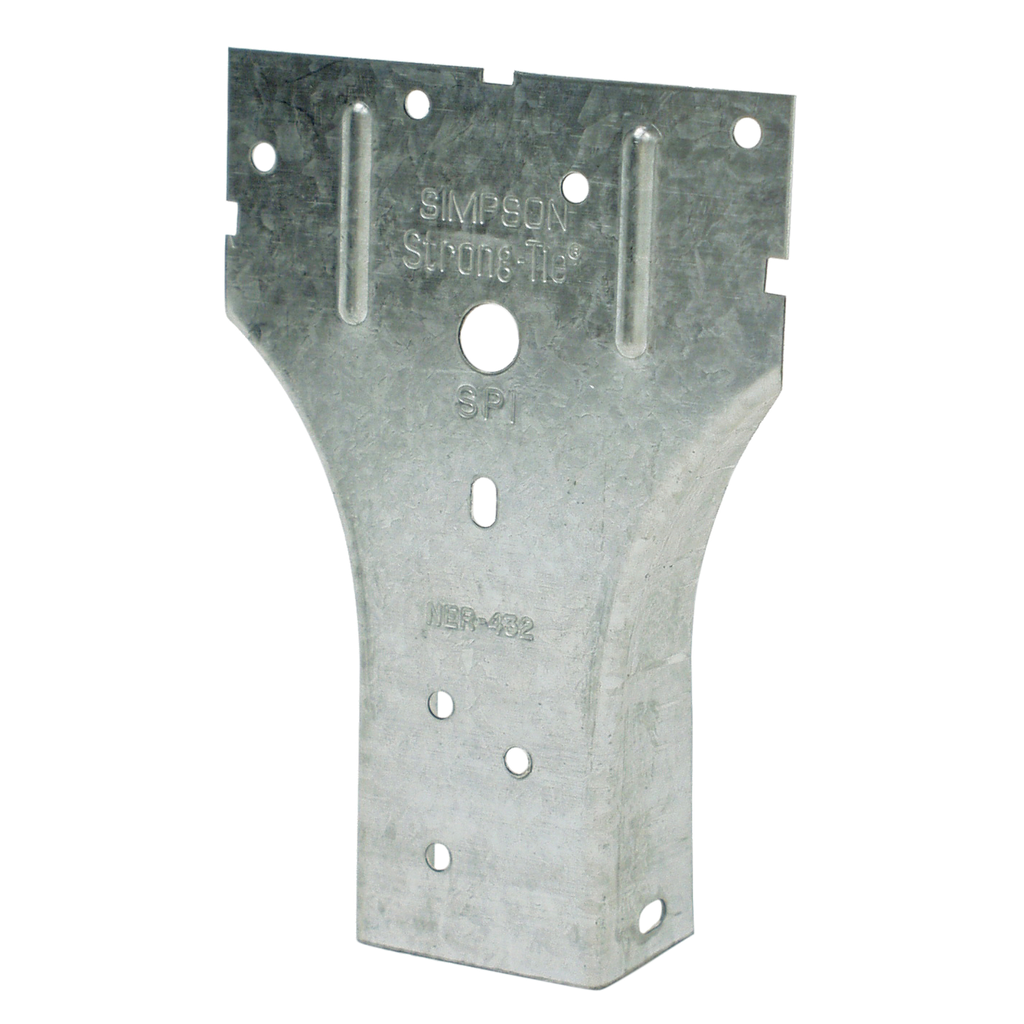

The Simpson Strong-Tie® stud-plate tie series offers various solutions for connecting the stud to the top and bottom plates. The SP1 and SP2 are designed as stud-to-plate connections to resist uplift. The SP1 is designed for sill-to-stud connections while the SP2 is for the double-top-plate-to-stud connection. These stud-plate ties feature angled holes for a positive connection from the stud to the plates.
Additional information
| Weight | 0.19 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3.5 in |
| Stud Size | nominal 2x |
