STUD PLATE
$2.07
Engineered for robustness and reliability, the galvanized stud plate tie from Simpson Strong-Tie is an essential component for any construction project demanding structural integrity. Its unique design eliminates the need for top or bottom track attachments, simplifying the installation process while ensuring strong support against wind and seismic forces. Made from durable 20-gauge steel and coated with G90 galvanization, this tie provides exceptional corrosion resistance, making it ideal for both indoor and outdoor applications. With a load-rated capacity, you can trust that this plate tie will meet the rigorous demands of your building requirements.
Description

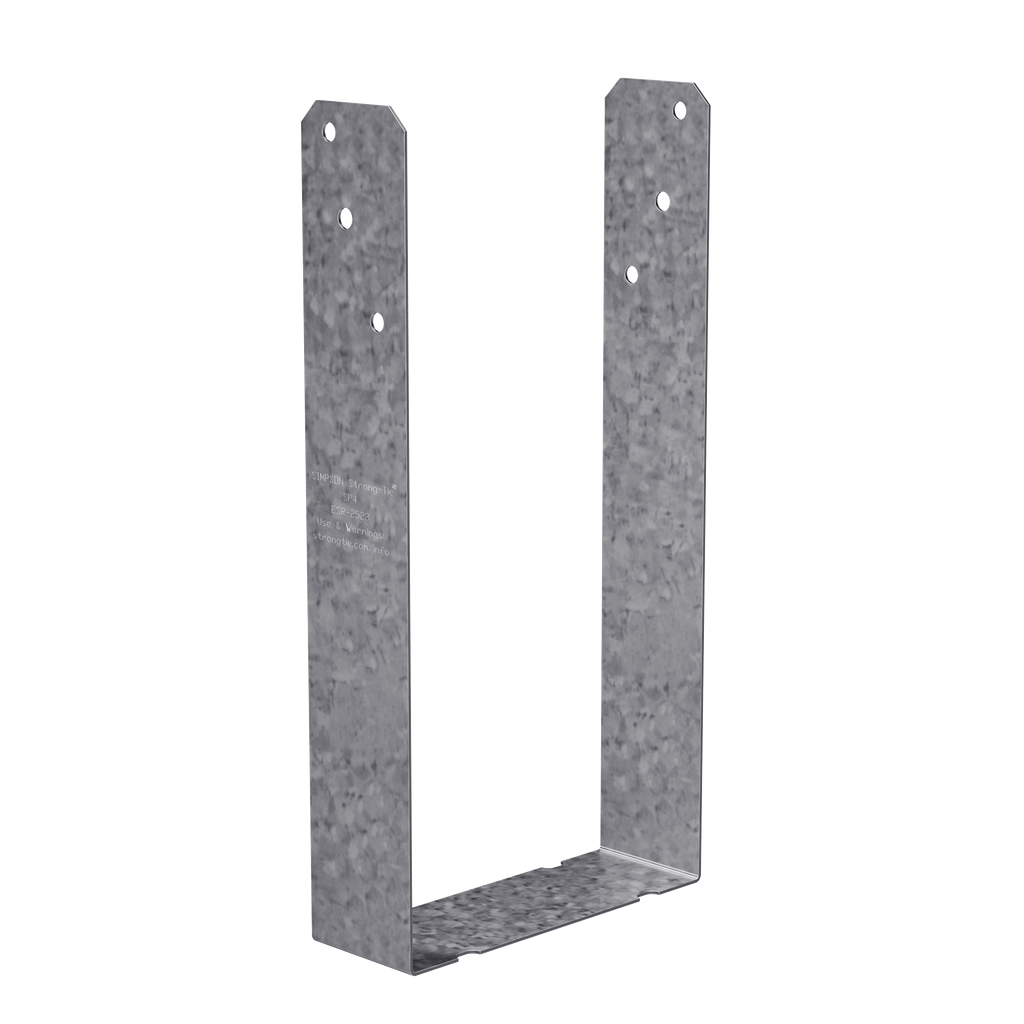

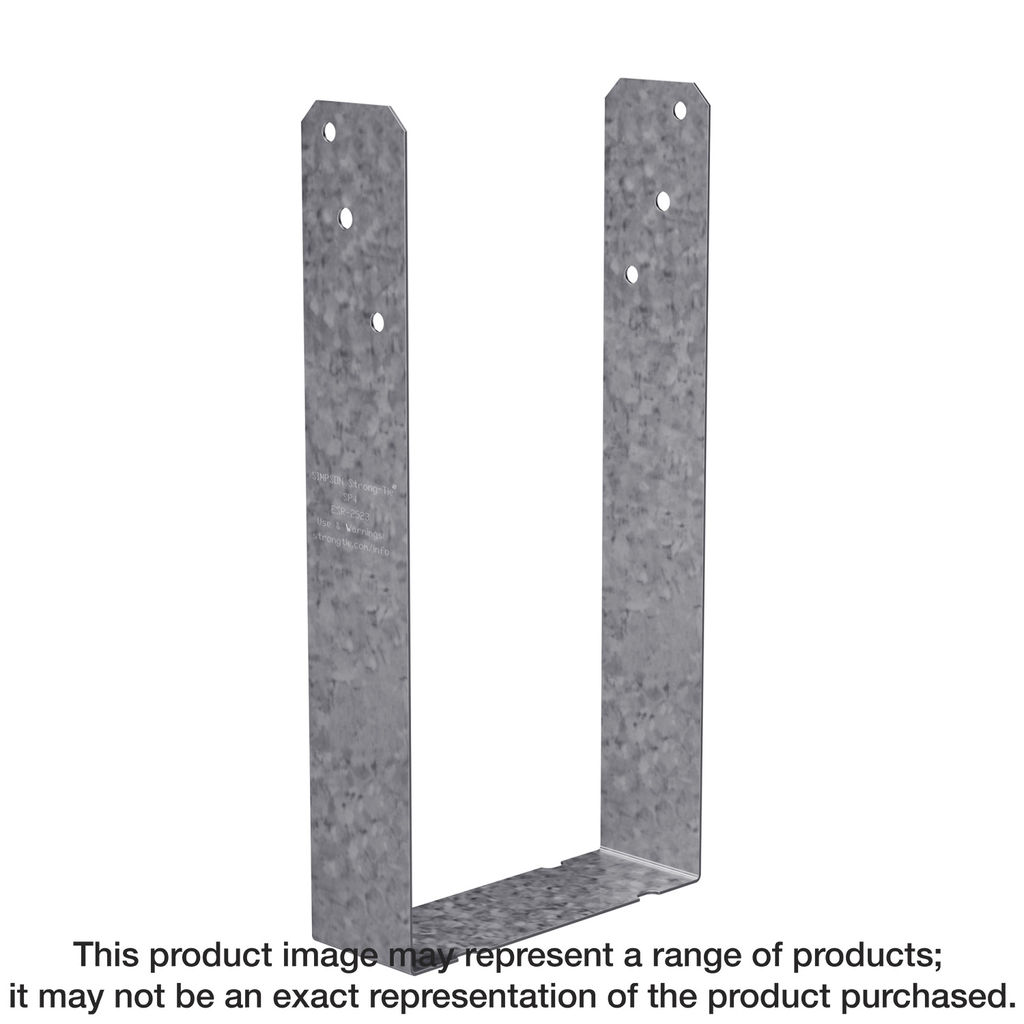

The stud-plate tie series offers various solutions for connecting the stud to the top and bottom plates. The SP is designed as a stud-to-plate connection to resist uplift. This U-shaped strap has a horizontal portion that bears against the wood-wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. These ties are a cost-effective option when properly installed before the placement of the wall.
Additional information
| Weight | 0.23 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3.6325 in |
| Size | 3-9/16 in x 7-1/4 in |
