STUD PLATE
$2.25
Engineered for exceptional strength and reliability, the Simpson Strong-Tie SP galvanized stud plate tie is a vital component for ensuring structural integrity in construction projects. Constructed from durable 20-gauge steel and coated with G90 galvanization, it provides robust protection against corrosion, making it suitable for both residential and commercial applications. This load-rated tie is specifically designed to withstand challenging conditions, such as wind and seismic forces, while simplifying installation since it does not require attachments to top or bottom tracks. With its nominal dimensions, it’s an effective solution for secure fastening that enhances the overall stability of building frameworks.
Description

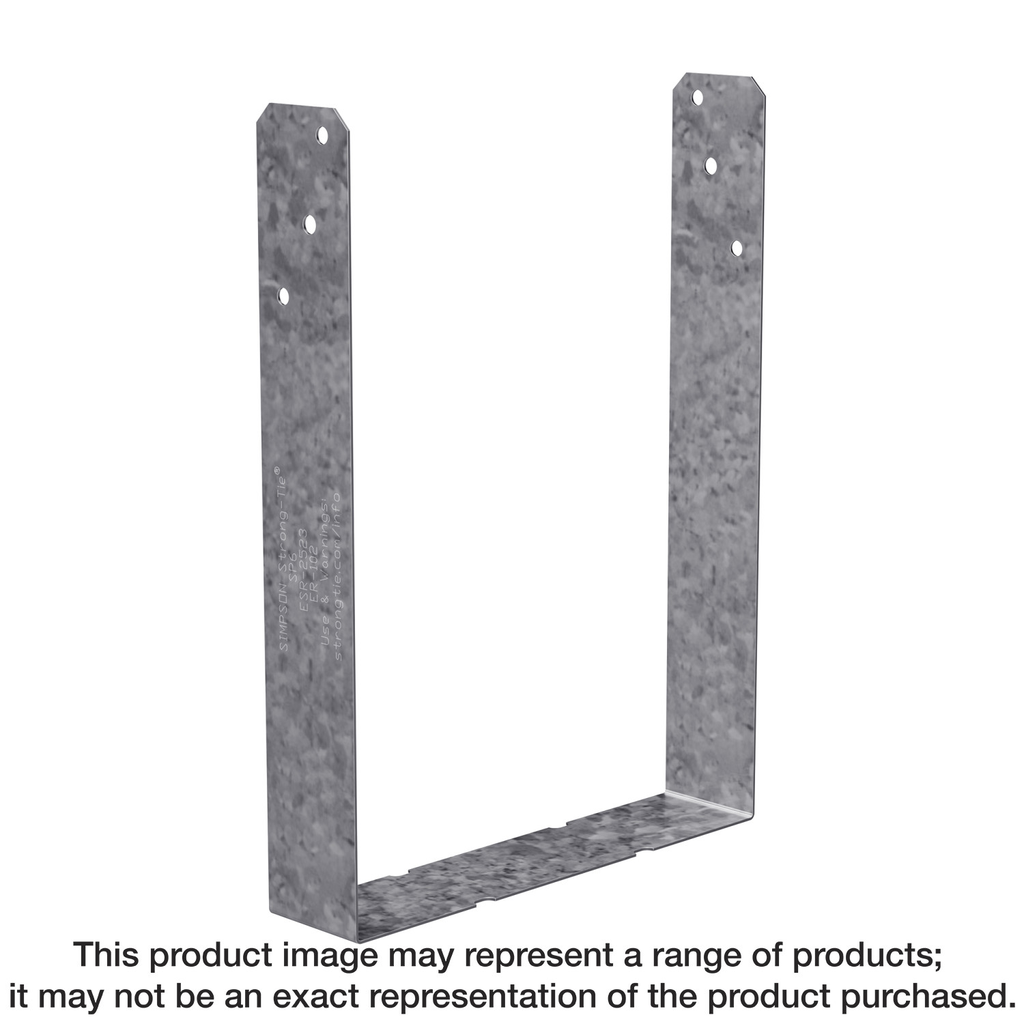

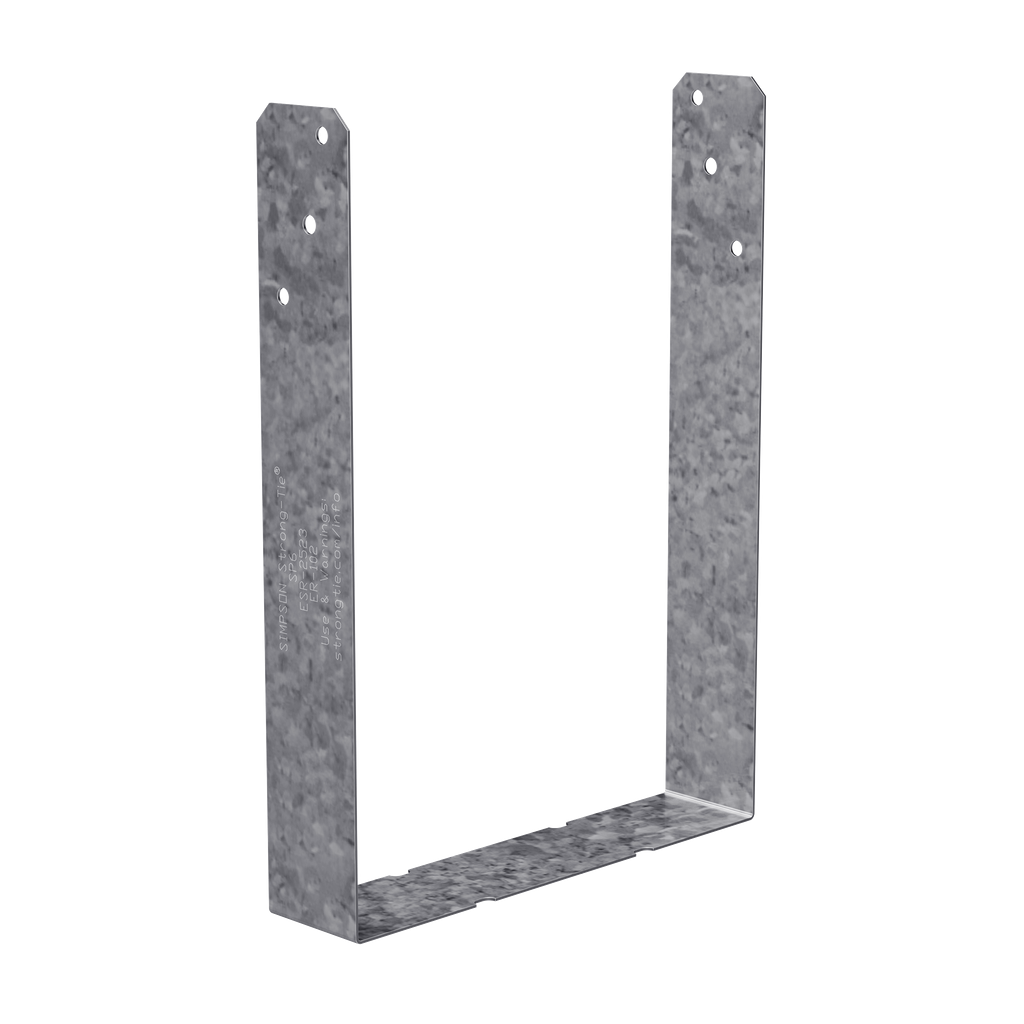

The stud-plate tie series offers various solutions for connecting the stud to the top and bottom plates. The SP is designed as a stud-to-plate connection to resist uplift. This U-shaped strap has a horizontal portion that bears against the wood-wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. These ties are a cost-effective option when properly installed before the placement of the wall.
Additional information
| Weight | 0.27 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal stud size | 2x |
| Load Rating | Load rated |
