TENSION TIE
$48.56

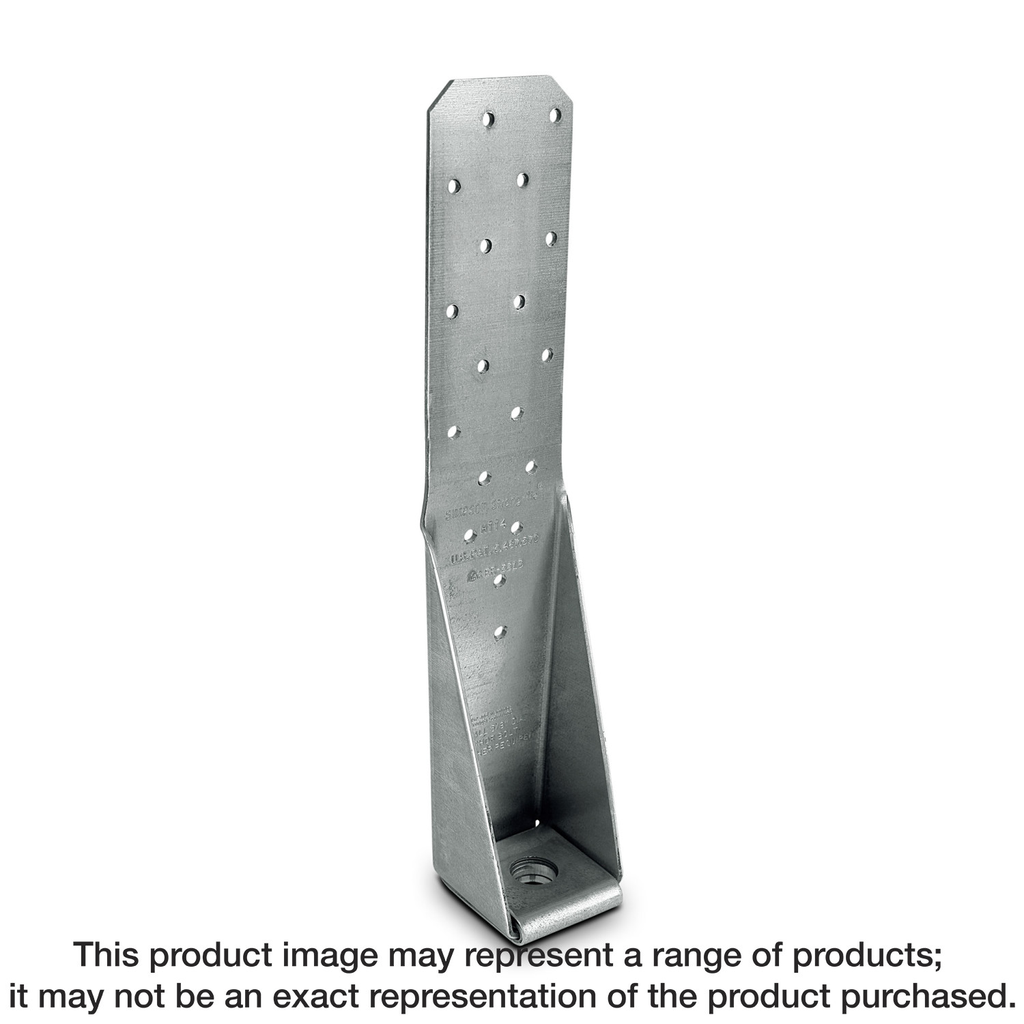

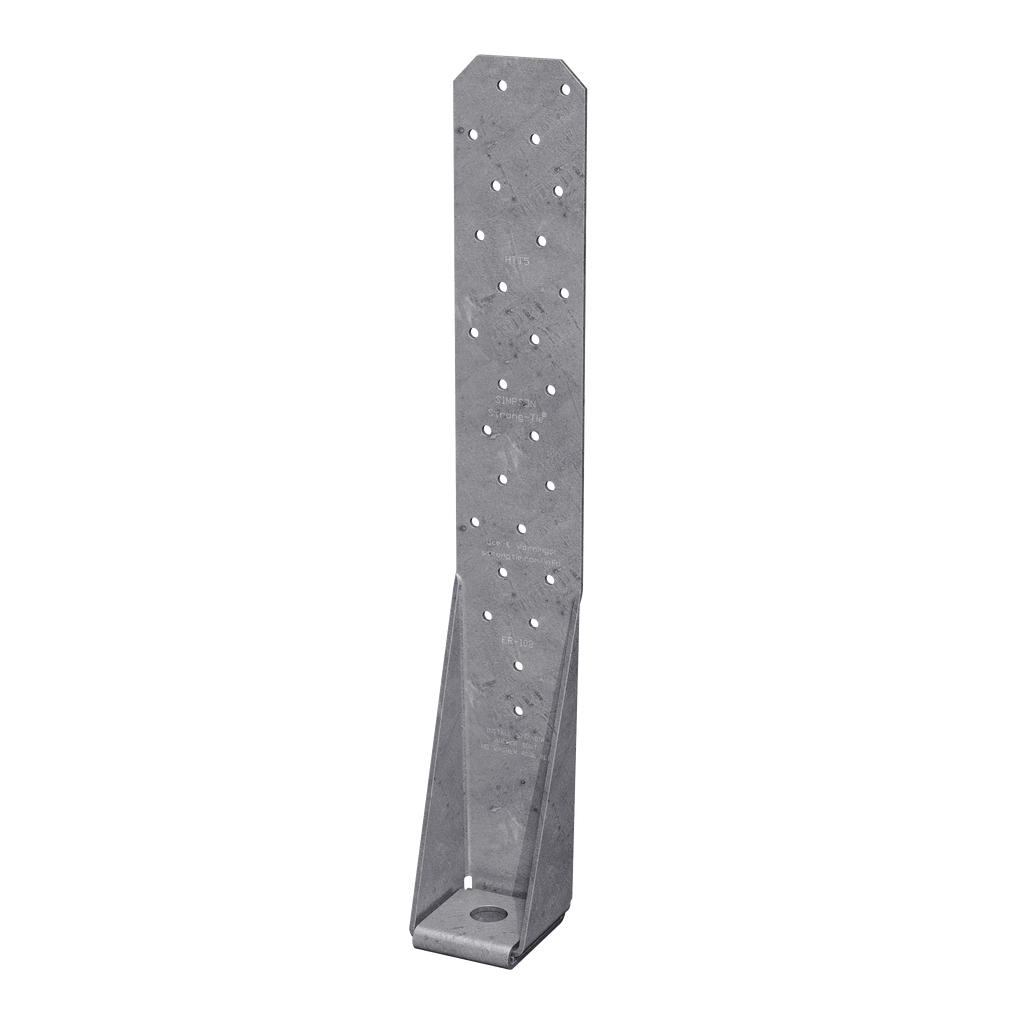

Engineered for strength and durability, the heavy tension tie by Simpson Strong-Tie is a reliable solution for both new construction and retrofit projects. Measuring 16 inches in length and made from robust 11-gauge steel, it boasts a four-ply design which significantly enhances its tension capacity. The hot-dip galvanization process provides superior corrosion resistance, making it an ideal choice for exterior applications and treated wood. With the added advantage of eliminating the need for anchor bolt washers, this versatile tension tie can be seamlessly installed using either cast-in-place or post-installed anchor bolts, streamlining your construction process.
Description
The Simpson Strong-Tie® HTT is designed to resist medium tension loads that are fastened with #10 screws. This single-piece formed heavy tension tie has a four-ply formed seat, is designed without rivets and does not require washers. This tension tie provides high-strength, post-pour, concrete-to-steel connections.
Additional information
| Weight | 2.12 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 2.6135 in |
| Length | 16 in |
