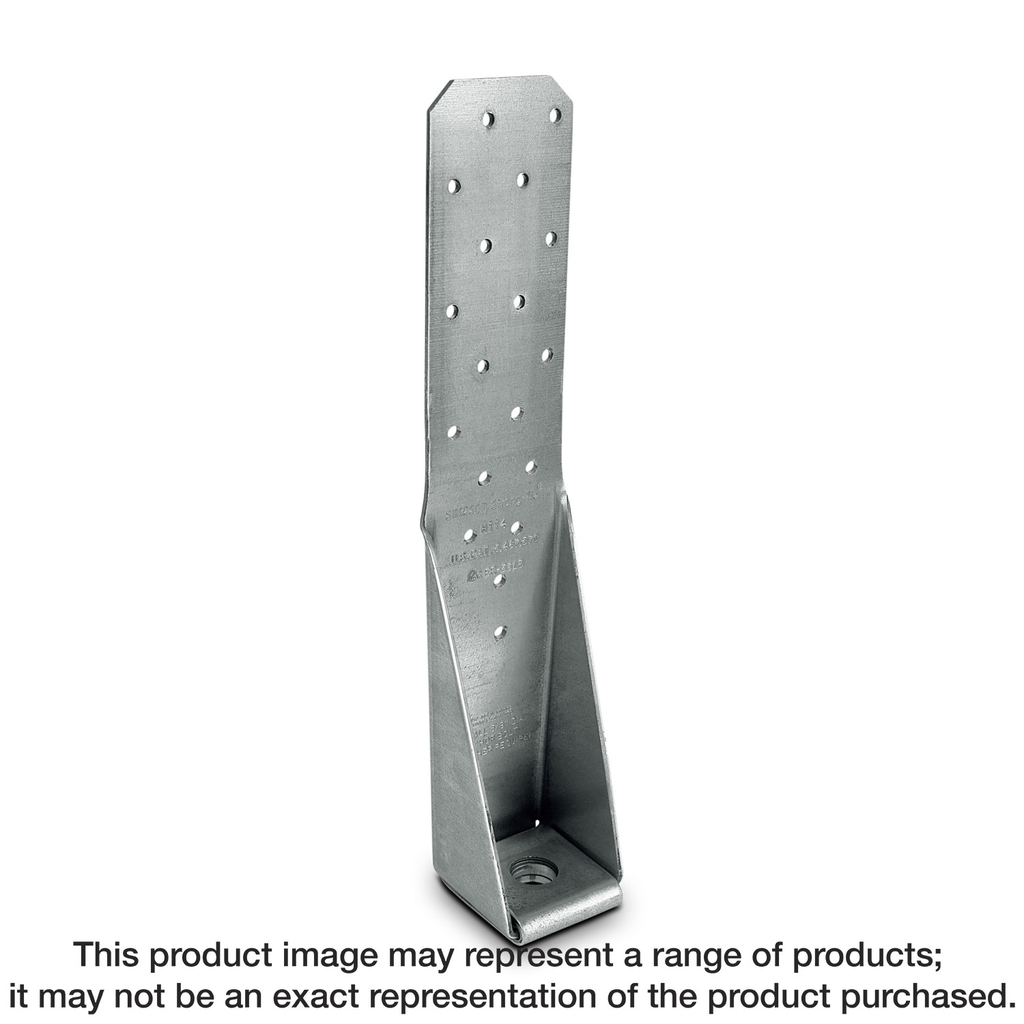

TENSION TIE FOR 3/4 ANCHOR
$29.93
Engineered for robust structural integrity, this heavy tension tie is designed to enhance tension capacity through its four-ply formed steel construction. With a generous dimension of 16 inches in length and 2-1/2 inches in width, it seamlessly accommodates both cast-in-place and post-installed anchor bolts, making it versatile for various construction scenarios. Tailored for durability, the tie is constructed from 11-gauge steel and is galvanized (G90) to resist corrosion, ensuring long-lasting performance in both retrofit and new construction applications. This component eliminates the need for anchor bolt washers, streamlining installation while providing reliable support for your project.
Description
The Simpson Strong-Tie® HTT is designed to resist medium tension loads that are fastened with #10 screws. This single-piece formed heavy tension tie has a four-ply formed seat, is designed without rivets and does not require washers. This tension tie provides high-strength, post-pour, concrete-to-steel connections.
Additional information
| Weight | 2.17 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Anchor Rod Diameter | 3/4 in |
| Length | 16 in |
