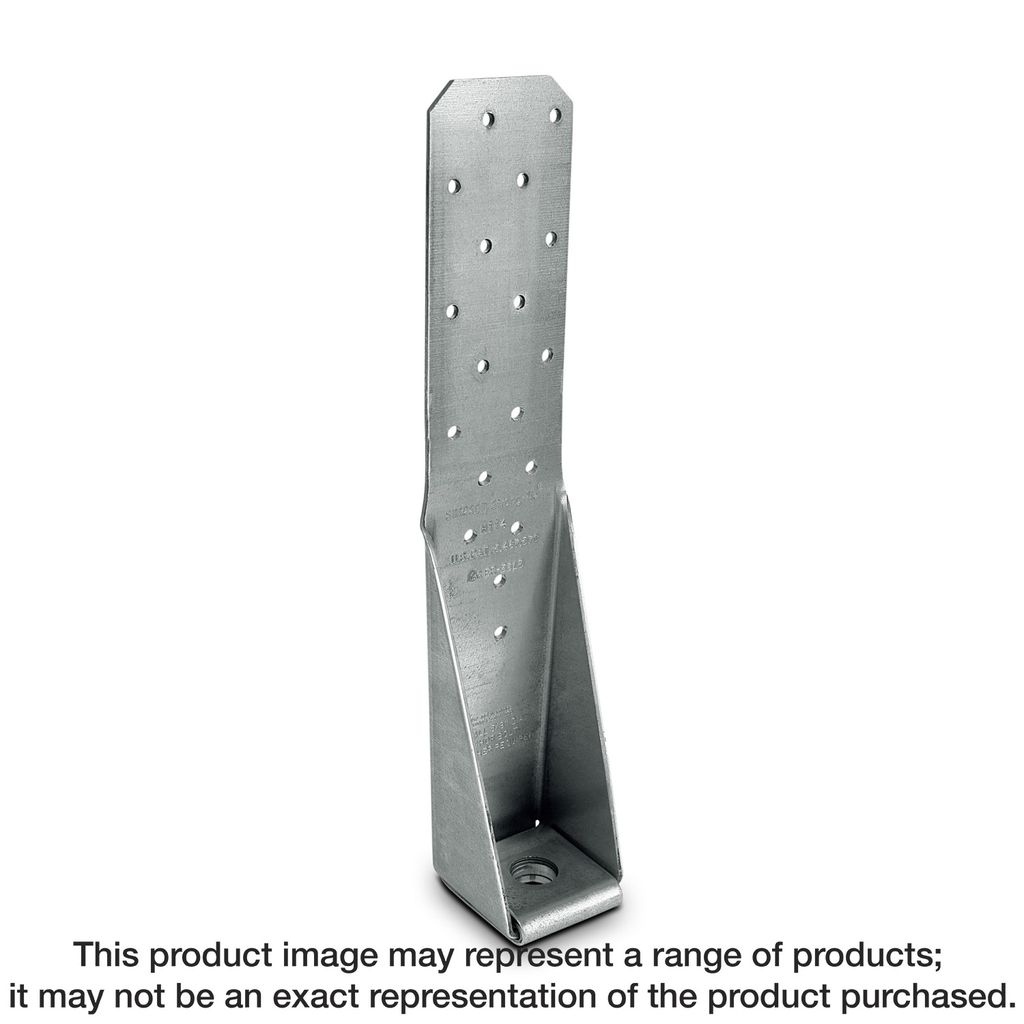

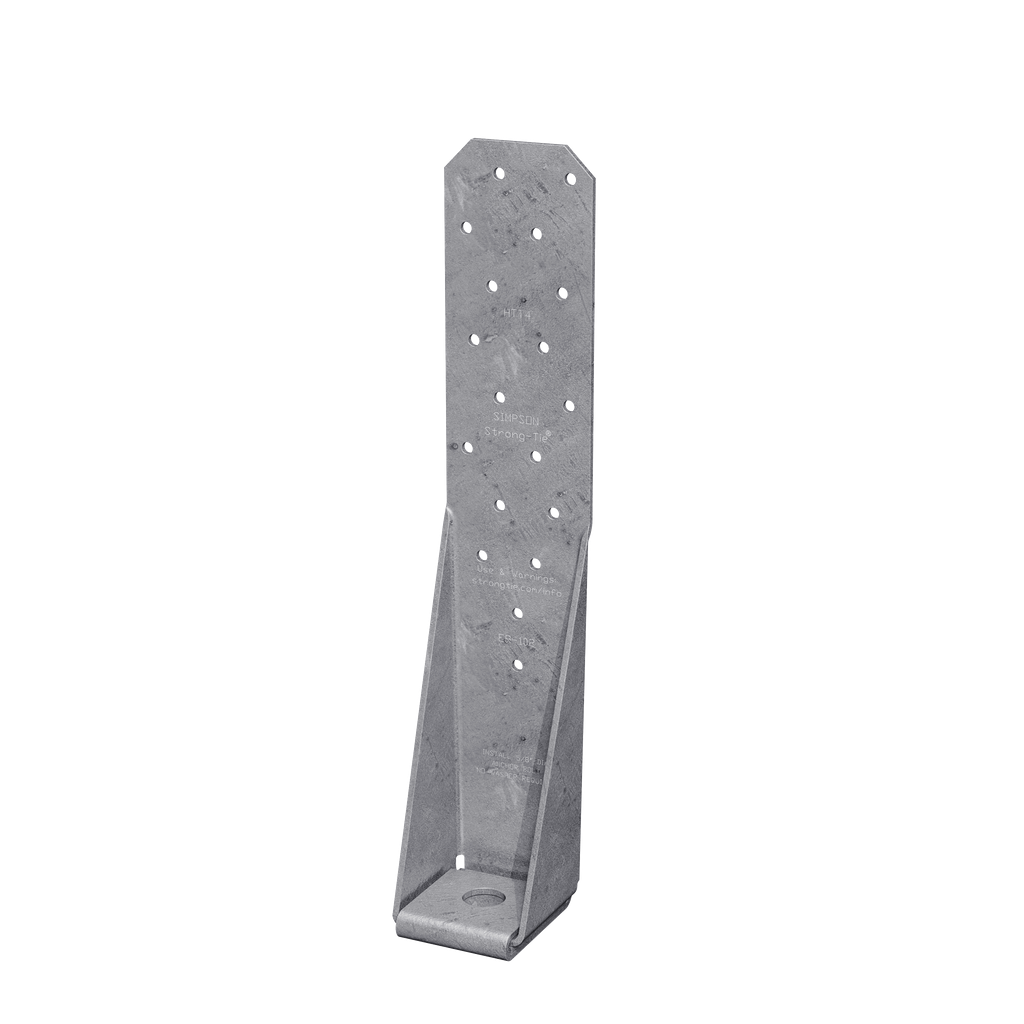

TENSION TIE
$45.60
Constructed for robustness and designed to meet the demands of both retrofit and new construction projects, this hot-dip galvanized heavy tension tie is an essential component for your anchoring needs. Its compatibility with both cast-in-place and post-installed anchor bolts simplifies installation, and its unique design eliminates the need for anchor bolt washers, streamlining your setup. Crafted from 11-gauge steel, the tie features four-ply formed construction that significantly enhances tension capacity, making it ideal for various applications, particularly in outdoor and treated wood environments where additional corrosion resistance is crucial. With dimensions of 2-1/2 inches in width and 12-3/8 inches in length, it’s a reliable choice for ensuring secure and lasting connections in your projects.
Description
The Simpson Strong-Tie® HTT is designed to resist medium tension loads that are fastened with #10 screws. This single-piece formed heavy tension tie has a four-ply formed seat, is designed without rivets and does not require washers. This tension tie provides high-strength, post-pour, concrete-to-steel connections.
Additional information
| Weight | 1.87 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 2.6135 in |
| Length | 12-3/8 in |
