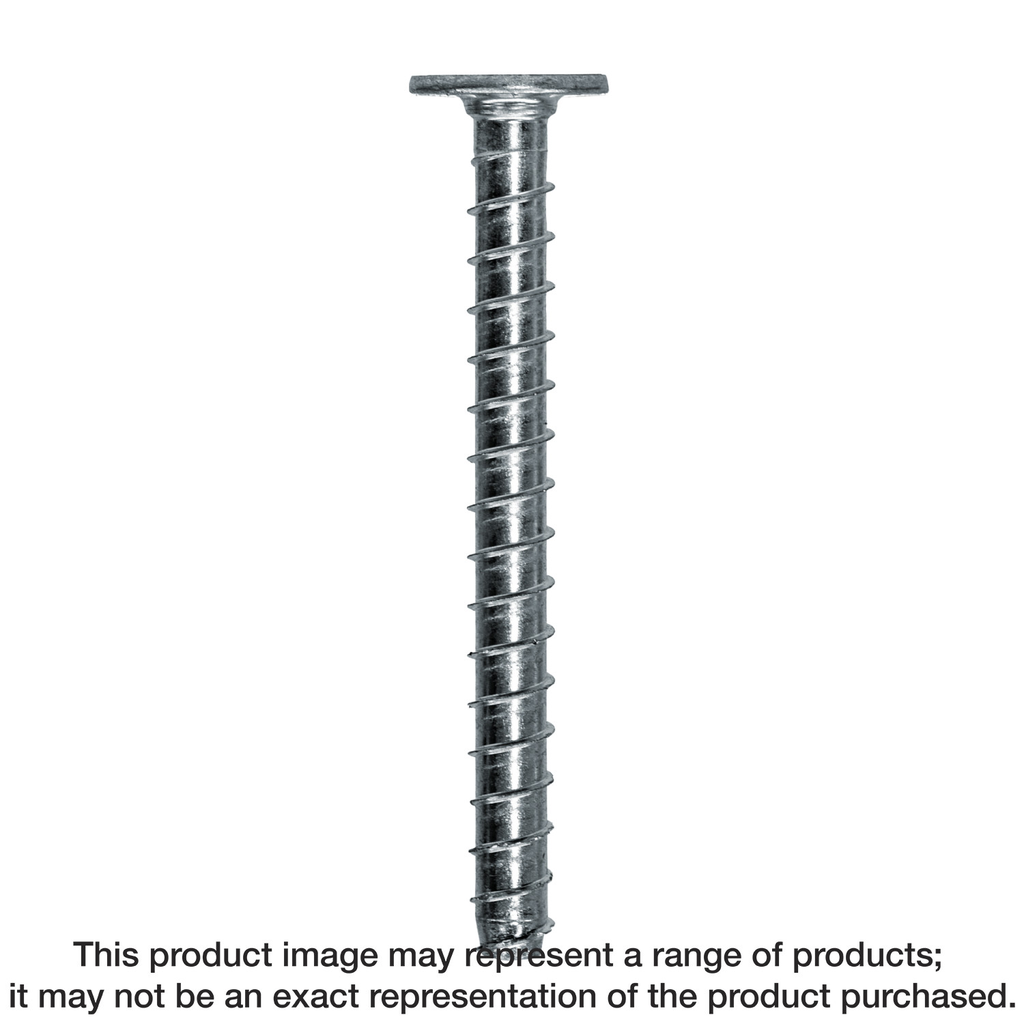

THD 1/2 x 6 Washer Head – Pack 15
$45.47
Engineered for versatility and reliability, the Titen HD® heavy-duty screw anchor from Simpson Strong-Tie offers a robust solution for both temporary and permanent anchoring applications. The innovative washer head design expands the range of compatible applications, making it an excellent choice when hex head anchors are not suitable. Each box is conveniently equipped with a 1/2-inch socket adapter and two T-drive bits, ensuring you have everything necessary for a straightforward installation process without the need for specialized drill bits. Constructed with serrated teeth on the tip, these anchors facilitate easier cutting into concrete while minimizing installation torque, making them ideal for use in various settings, including those subjected to static, wind, and seismic loads. However, it is advised to avoid using these anchors in highly corrosive environments and for permanent exterior applications due to their zinc plating.
Description
The Titen HD with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head’s low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor’s 6-lobe drive eases driving and is less prone to stripping.
Additional information
| Weight | 5.7 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 1.375 in. |
| Size | 1/2 in. x 6 in. |
