THD 3/8 x 4 Countersunk 316SS-Pak 25
$161.04

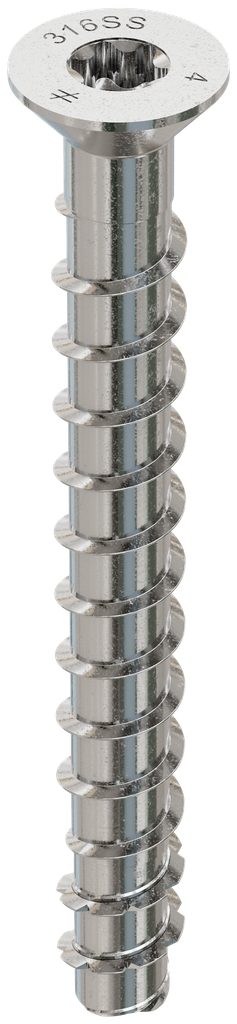

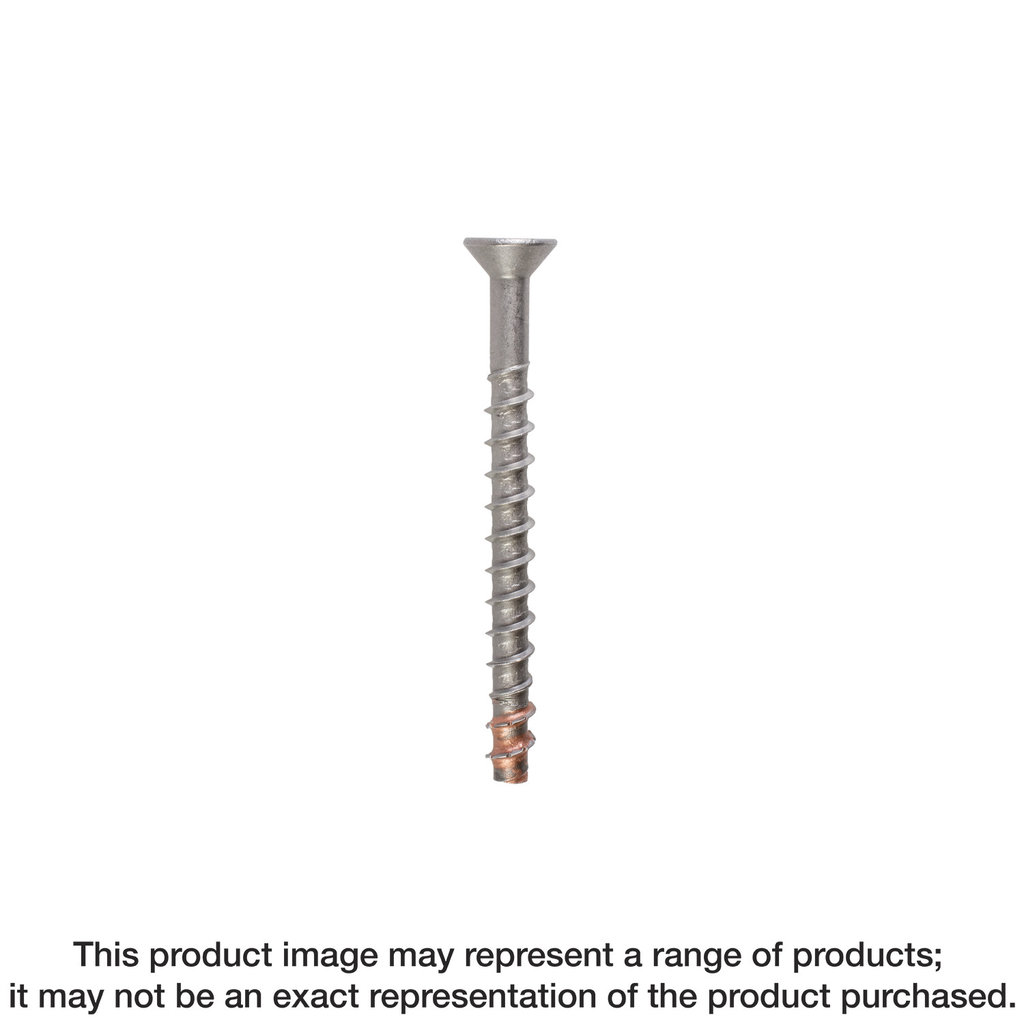

Designed for both static and seismic loading conditions, the Titen HD® screw anchor from Simpson Strong-Tie offers a robust solution for heavy-duty anchoring needs. With its 3/8 inch by 4 inch dimensions, this countersunk head anchor is engineered from Type 316 stainless steel, ensuring it meets severe corrosion resistance requirements. Its innovative T50 6-lobe drive minimizes driver-bit cam-outs during installation, making the process smoother and more efficient when using standard ANSI tolerance drill bits. The unique design features serrated teeth on the tip that facilitate cutting and reduce necessary installation torque, while the flush-mount capacity of the countersunk head allows for versatile applications, including those where a hex head would be unsuitable. Moreover, its removable nature makes it ideal for temporary anchoring situations, allowing for flexibility in fixture placement.
Description
The Titen HD heavy-duty screw anchor family of products set the standard for high-performance anchoring and ease of installation. The Titen HD (carbon steel) is designed for use in dry, interior, noncorrosive environments or temporary outdoor applications, while the Titen HD Type 316 stainless-steel option offers you long-lasting corrosion resistance for unsurpassed peace of mind. Titen HD offers industry-leading performance even in seismic and wind-governed conditions. The countersunk head style is for applications that require a flush-mount profile. Countersinking also leaves a cleaner surface appearance for exposed through-set applications. The anchor head’s 6-lobe drive eases driving and is less prone to stripping than traditional recessed anchor heads.
Additional information
| Weight | 3.37 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Size | 3/8 in x 4 in |
| Depth | 0.748 in |
