THD 5/8 x 8 Washer Head – Pack 10

$86.01

Engineered for robust performance in a variety of conditions, this heavy-duty screw anchor from Simpson Strong-Tie is qualified for both cracked and uncracked concrete, making it ideal for applications subject to static, wind, and seismic loads. Its serrated teeth at the tip are specifically designed to reduce installation torque, allowing for a smoother and more efficient setup. Included in each package are a 1/2-inch socket adapter and two T-drive bits, ensuring that you have all the tools necessary for installation without the need for special drill bits. Additionally, the washer-head design accommodates a range of fixture applications, providing versatility in mounting while allowing for easy removal should the need arise for adjustments or relocation. With a zinc plating that protects against some corrosion, this anchor is perfect for many indoor applications, although it should be noted that it is not suited for permanent use in highly corrosive environments.

SKU: THDB62800WH Category: Tags: , Barcode: 707392014881.

Description

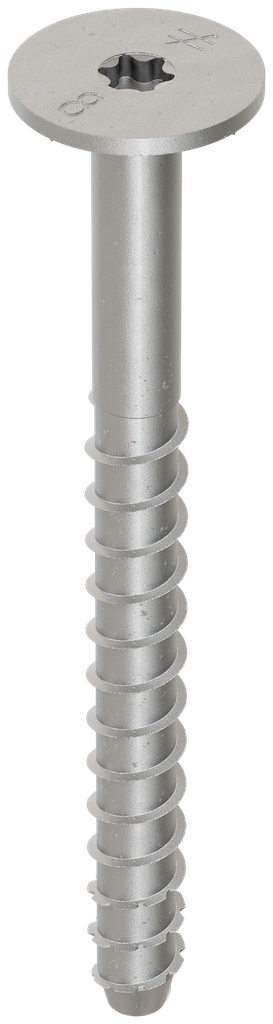

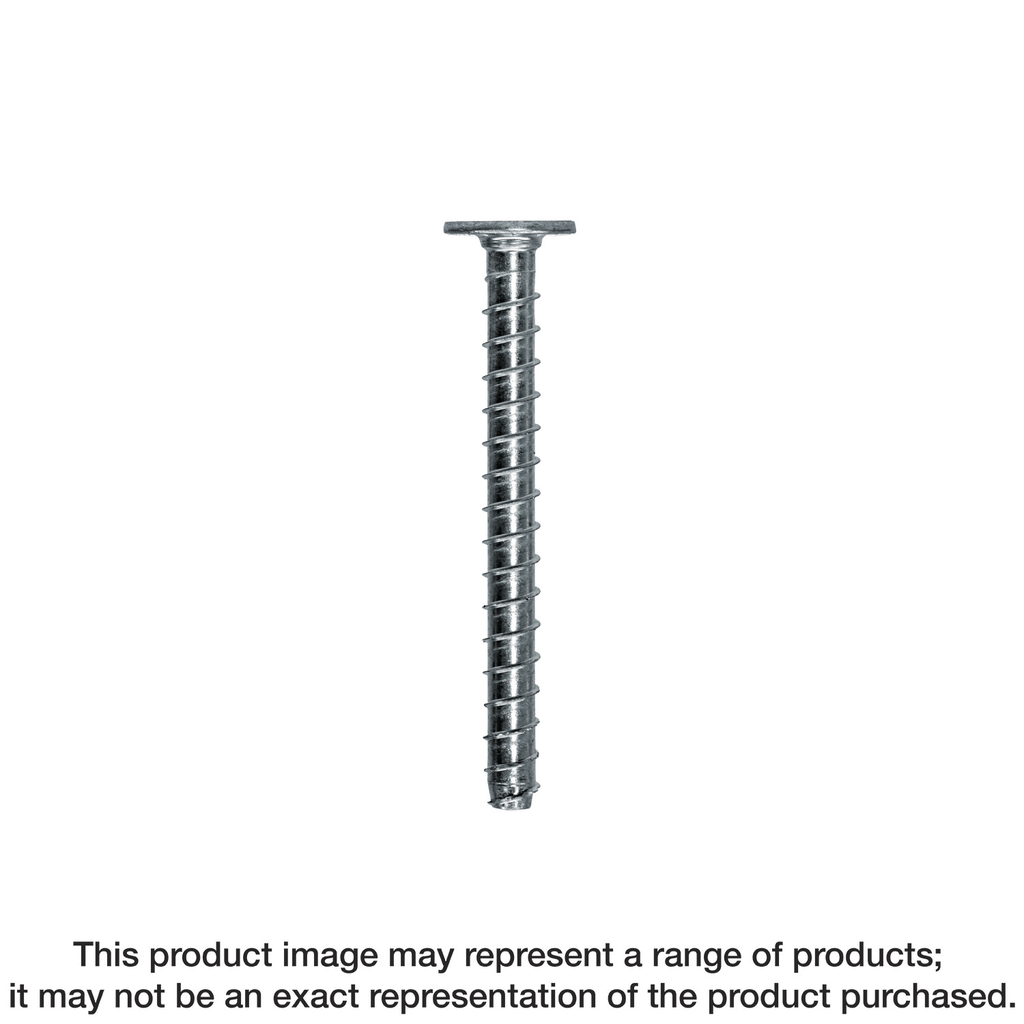

The Titen HD with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head’s low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor’s 6-lobe drive eases driving and is less prone to stripping.

Additional information

Weight 8.13 lbs
Dimensions 5 × 5 × 5 in
Anchor Size

5/8 in x 8 in

Depth

1.75 in
