TOP FLANGE HANGER FOR 3X10
$21.15

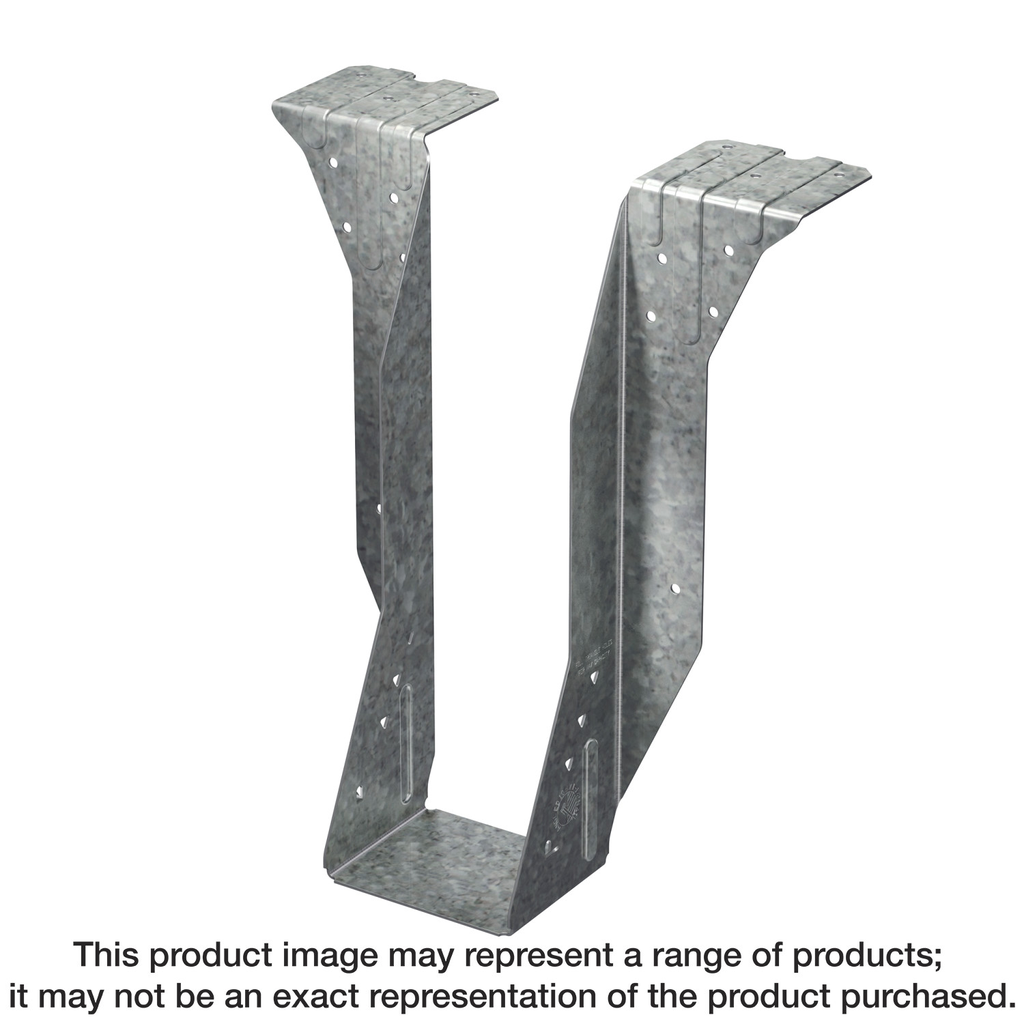

Engineered for strength and reliability, the BA310 BA Top-Flange Joist Hanger is the ideal solution for securely supporting 3×10 joists. Crafted from robust 12-gauge steel and finished with a galvanized (G90) coating, this hanger offers exceptional corrosion resistance, making it suitable for various environmental conditions. Its innovative one-piece design ensures ease of installation while effectively capturing the top chord of the joist to prevent rotation, thereby eliminating the need for additional web stiffeners. For those requiring customized solutions, special orders are available to accommodate sloped or skewed members, enhancing its versatility on any project.
Description
The BA is designed for engineered wood and solid sawn lumber applications. This top-flange hanger can carry medium loads with solid sawn lumber and higher loads with engineered wood products. The BA features minimum nailing with positive-angle nailing (PAN) to target moderate load conditions and maximum nailing to support higher loads.
Additional information
| Weight | 1.77 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal joist size | 3×10 |
| Depth | 8.76 in |
