TOP FLANGE HANGER FOR 3X14
$24.77

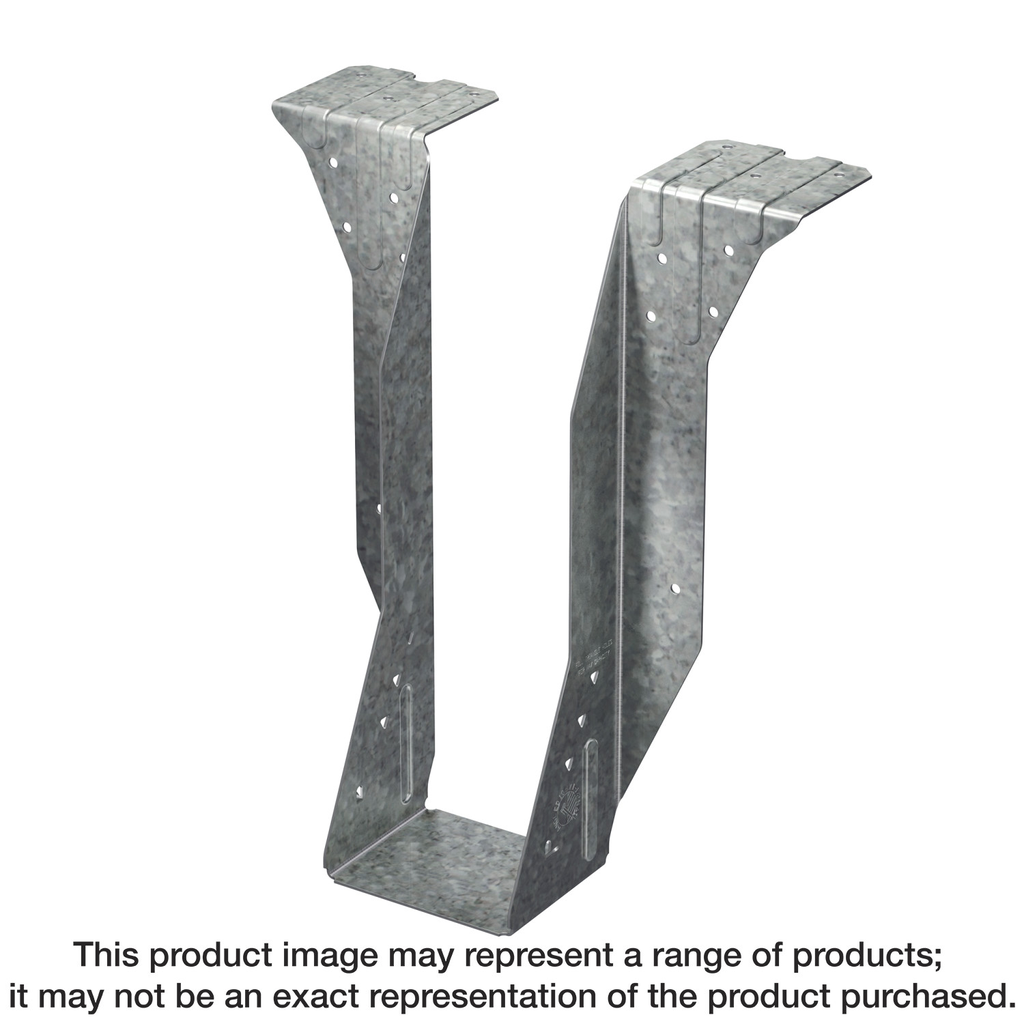

Engineered for reliability and strength, the BA314 top-flange joist hanger from Simpson Strong-Tie is designed specifically for 3×14 nominal joists. Constructed from durable 12-gauge steel and galvanized with G90 coating, it offers exceptional corrosion resistance, making it well-suited for various outdoor and moisture-exposed applications. The innovative two-level embossment at the top flange enhances stiffness, allowing for both moderate and higher load capacities depending on nailing choices. Additionally, its full-height joist flange captures the top chord of the joist, effectively preventing rotation and eliminating the need for extra web stiffeners, ultimately promoting a more efficient installation process. For specialized setups, this hanger can also be ordered to accommodate sloped or skewed members, making it a versatile choice for builders.
Description
The BA series of top-flange hangers are a cost-effective option for engineered wood and solid sawn lumber applications. They are designed to carry medium loads with solid sawn lumber and higher loads with engineered wood products. They feature min./max. nailing options for design versatility.
Additional information
| Weight | 2.44 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 3×14 |
| Depth | 8.76 in |
