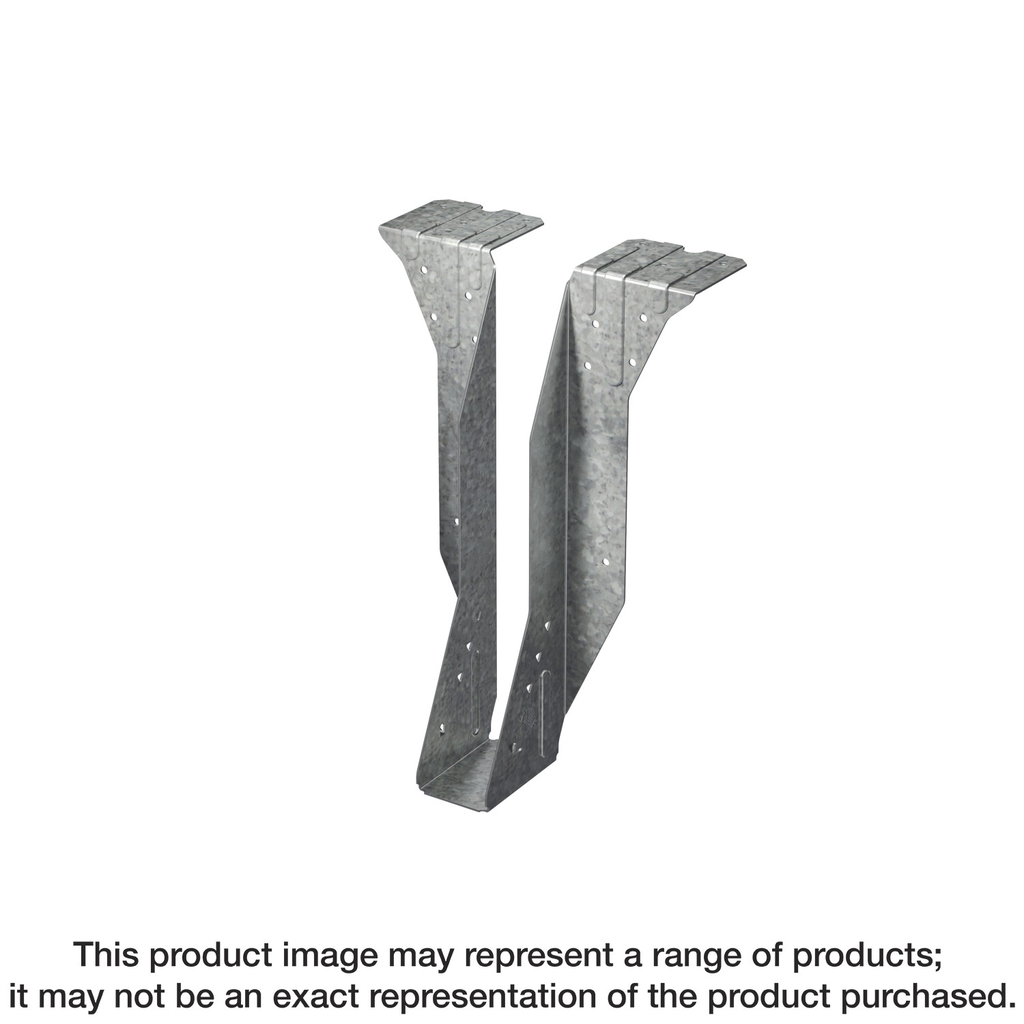

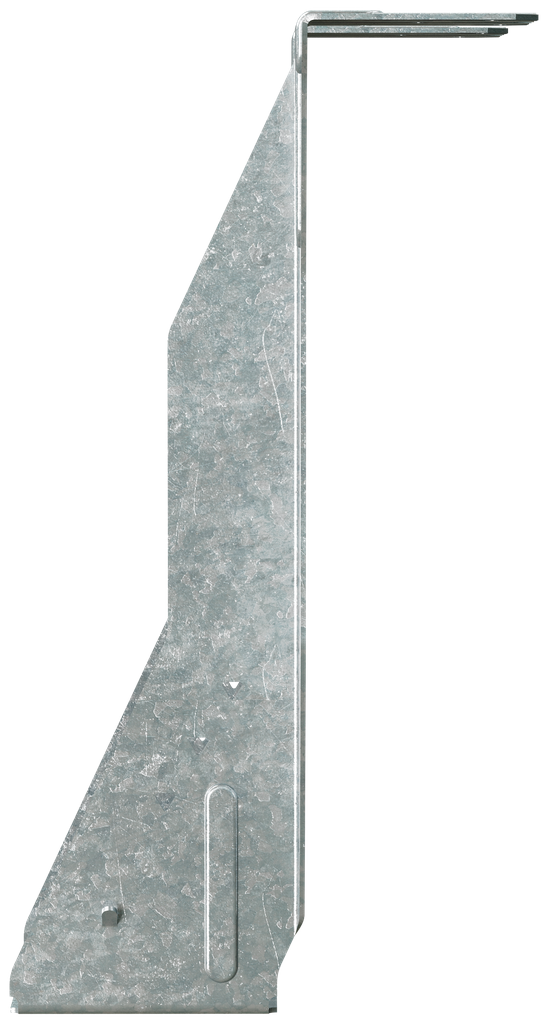

TOP FLANGE HANGER FOR 4X12
$21.03
Engineered for robust performance, this joist hanger from Simpson Strong-Tie is designed to support nominal joist sizes of 4×12, providing reliable strength and stability in structural applications. Its galvanized (G90) finish offers exceptional resistance to corrosion, making it suitable for a variety of environments. The dual-level embossment at the top flange not only adds stiffness but also enhances overall performance, accommodating moderate loads with minimum nailing targets while enabling heavier loads with maximum nailing. Furthermore, the full-height joist flange effectively captures the top chord of the joist, eliminating the need for additional web stiffeners and preventing any potential rotation. For specialized construction needs, this hanger is available for special order to fit sloped or skewed members, ensuring versatility in any building project. Crafted from durable 14-gauge steel, it promises longevity and dependability in your construction efforts.
Description
The BA series of top-flange hangers are a cost-effective option for engineered wood and solid sawn lumber applications. They are designed to carry medium loads with solid sawn lumber and higher loads with engineered wood products. They feature min./max. nailing options for design versatility.
Additional information
| Weight | 2.19 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 4×12 in |
| Depth | 9.7605 in |
