TOP FLANGE HANGER FOR 4X14
$29.64

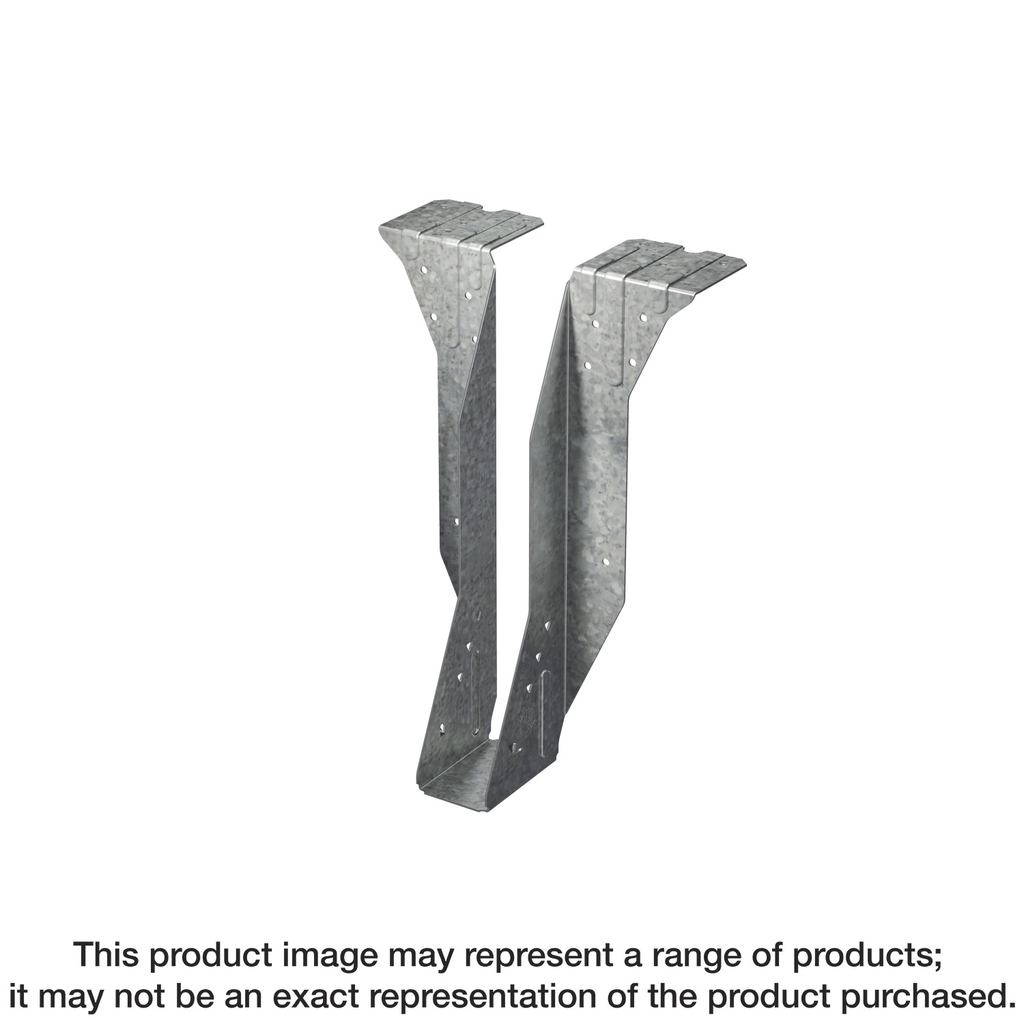

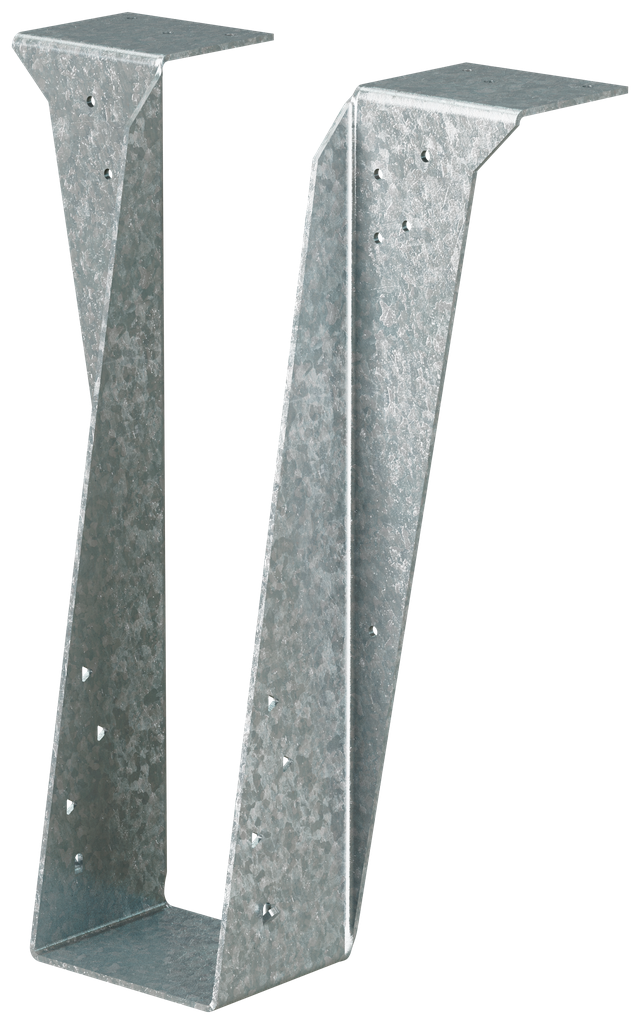

Engineered for strength and reliability, the Simpson Strong-Tie BA414 BA Top-Flange Joist Hanger is designed specifically for 4×14 joists. Its full-height joist flange effectively captures the top chord of the joist, preventing rotation and negating the need for web stiffeners, simplifying installation. This hanger features strategically positioned nailing targets that cater to both moderate and higher load demands, ensuring versatility in application. Constructed from robust 12-gauge steel and galvanized for enhanced corrosion resistance, it is built to withstand the test of time. Additionally, the two-level embossment at the top flange increases stiffness, providing added reliability for various structural configurations, including options for sloped or skewed members available by special order.
Description
The BA series of top-flange hangers are a cost-effective option for engineered wood and solid sawn lumber applications. They are designed to carry medium loads with solid sawn lumber and higher loads with engineered wood products. They feature min./max. nailing options for design versatility.
Additional information
| Weight | 2.52 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 9.7605 in |
| Size | 4×14 in |
