TOP FLANGE HANGER FOR 4X16
$28.21

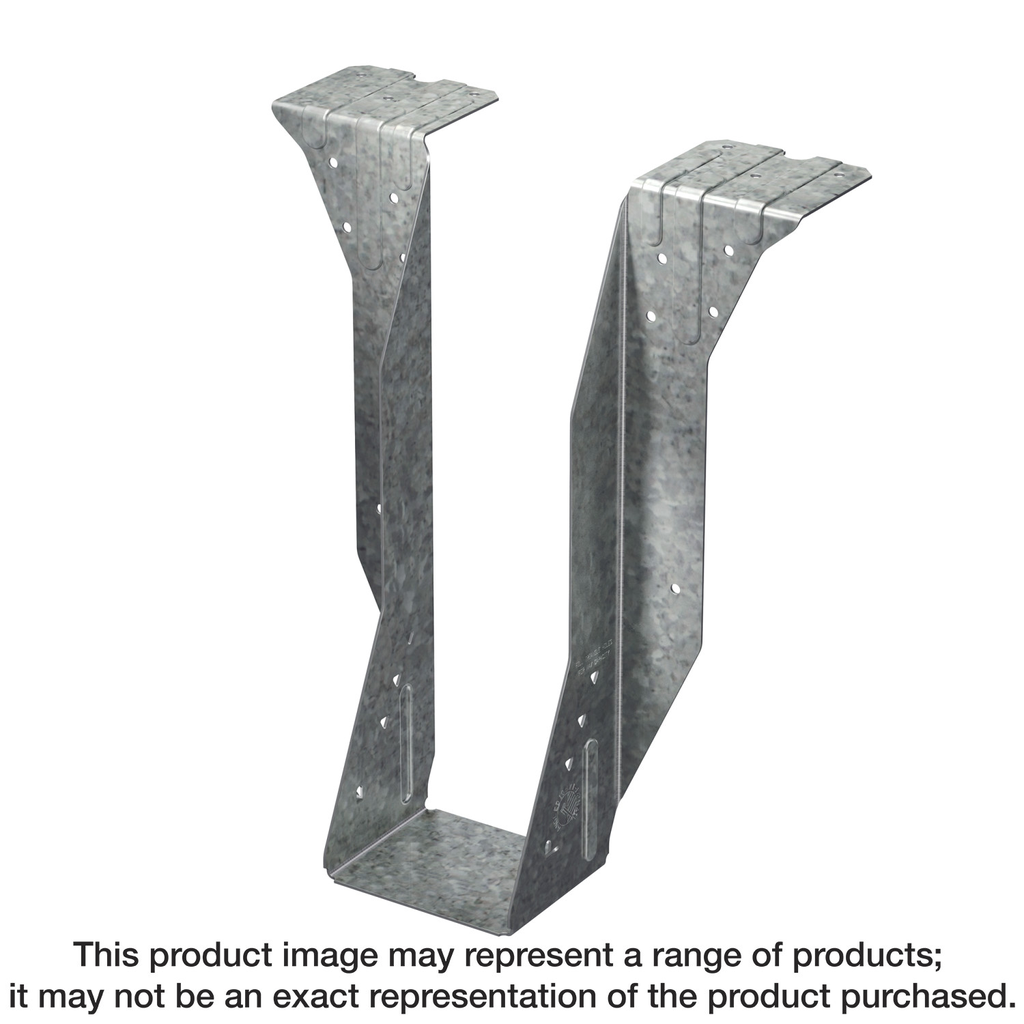

Engineered for exceptional performance and durability, the BA Top-Flange Joist Hanger from Simpson Strong-Tie is specifically designed for 4×16 joists. Its two-level embossment at the top flange significantly enhances stiffness, while the full-height joist flange effectively captures the top chord of the joist, preventing rotation and eliminating the need for additional web stiffeners. Constructed from robust 12-gauge steel and galvanized for increased corrosion resistance, this hanger can accommodate a range of load demands, offering minimum nailing for moderate loads and maximum nailing for higher capacity applications. Additionally, it can be available for special orders tailored to fit sloped or skewed members, making it a versatile choice for various structural needs.
Description
The BA series of top-flange hangers are a cost-effective option for engineered wood and solid sawn lumber applications. They are designed to carry medium loads with solid sawn lumber and higher loads with engineered wood products. They feature min./max. nailing options for design versatility.
Additional information
| Weight | 2.85 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 9.7605 in |
| Nominal Joist Size | 4×16 |
