TOP FLANGE HANGER FOR 4X8
$16.83

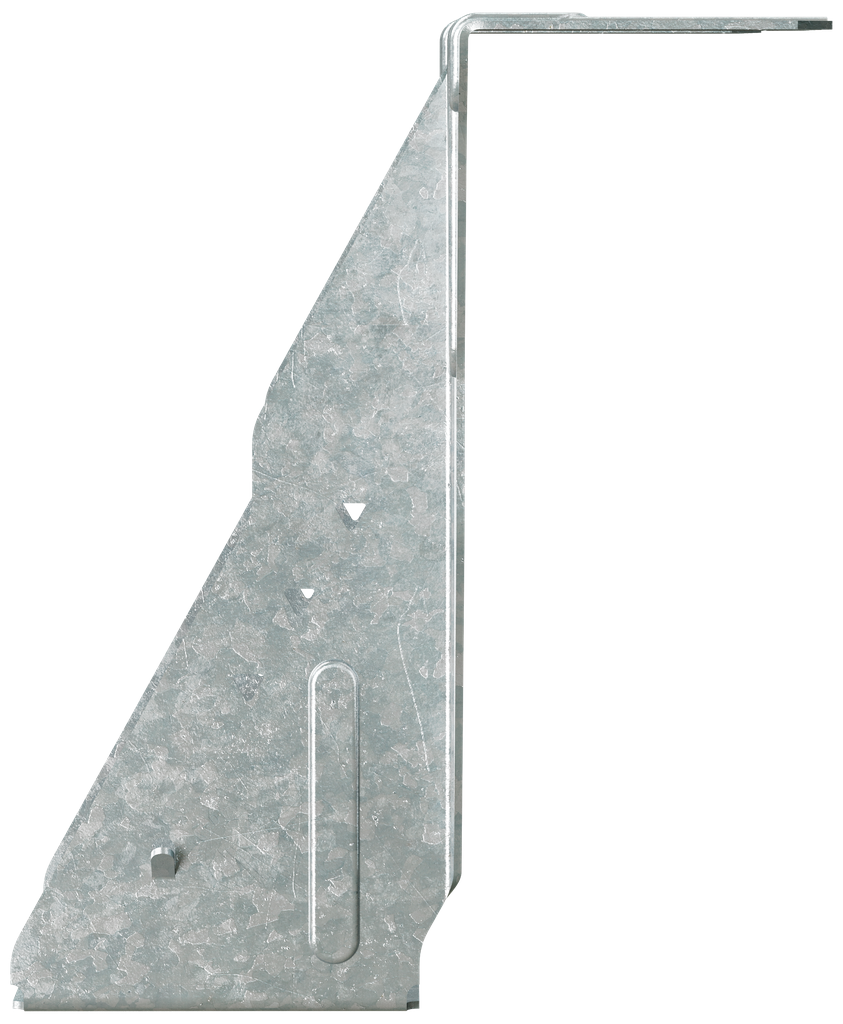

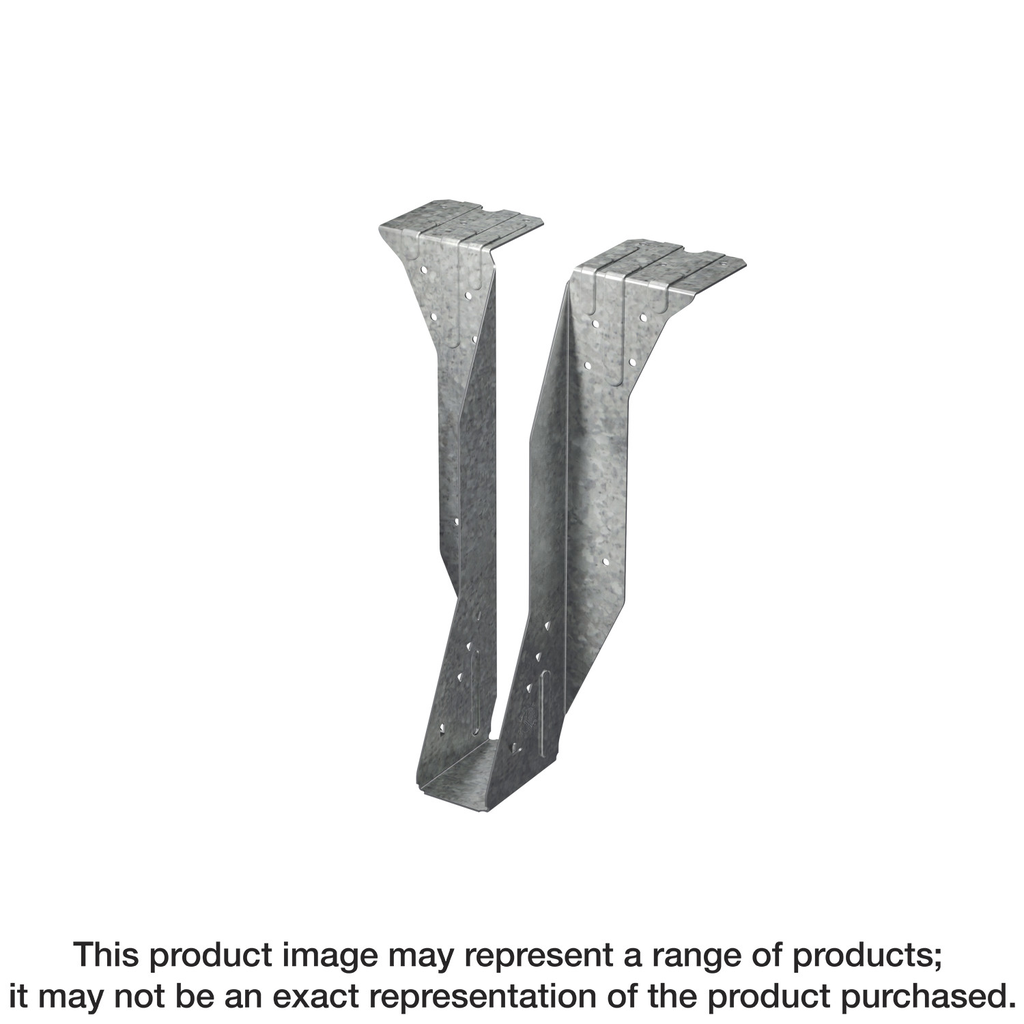

Engineered for superior strength and reliability, the BA Top-Flange Joist Hanger from Simpson Strong-Tie is crafted from robust 14-gauge steel to support 4×8 joist configurations. Its innovative one-piece design offers a cost-effective alternative to traditional welded hangers, ensuring quick installation without compromising durability. Galvanized with G90 coating, this hanger provides enhanced corrosion resistance, making it suitable for various environments. Additionally, the full-height joist flange effectively captures the top chord of the joist, preventing rotation and eliminating the need for web stiffeners, which streamlines construction and improves overall structural integrity. For unique applications, this hanger can be special ordered to accommodate sloped or skewed members, adding to its versatility.
Description
The BA is designed for engineered wood and solid sawn lumber applications. This top-flange hanger can carry medium loads with solid sawn lumber and higher loads with engineered wood products. The BA features minimum nailing with positive-angle nailing (PAN) to target moderate load conditions and maximum nailing to support higher loads.
Additional information
| Weight | 1.51 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 4×8 |
| Depth | 9.76 in |
