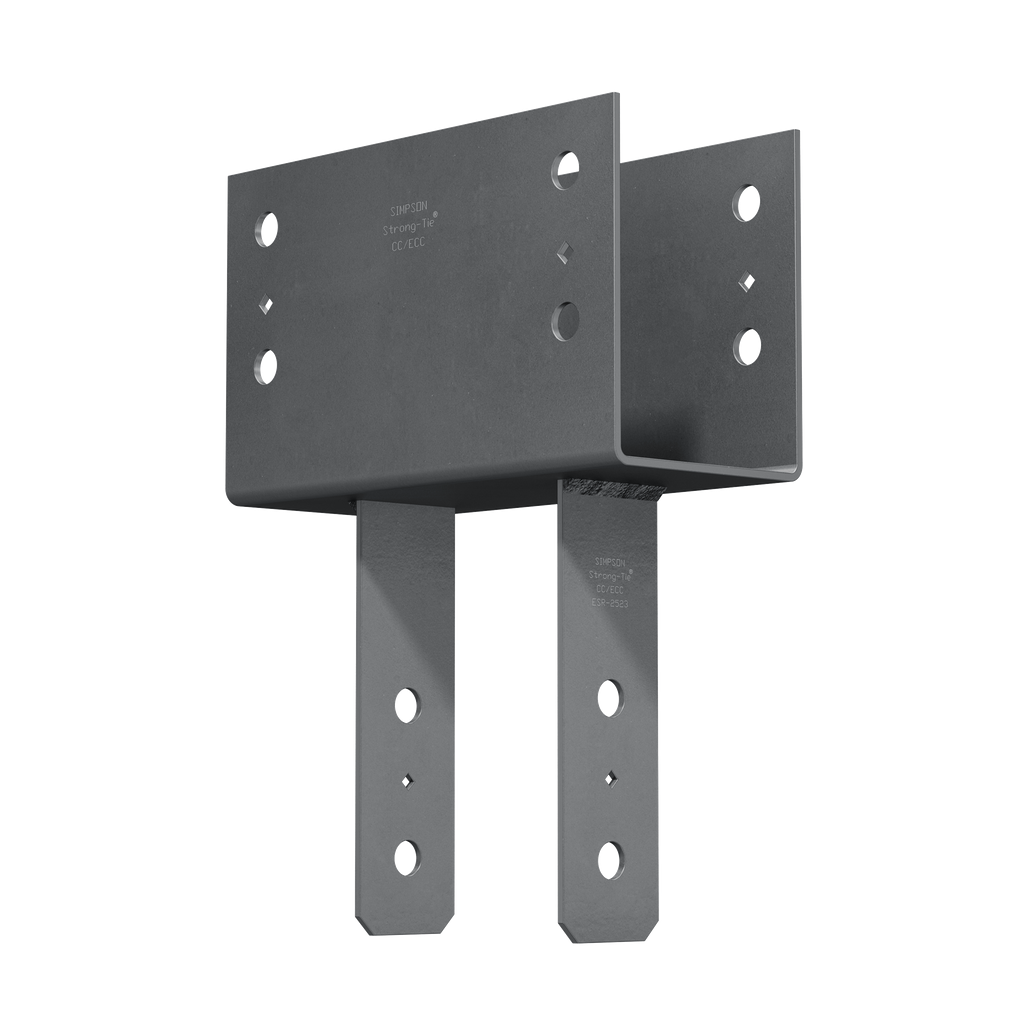

TRIPLE 2X BEAM, 6X POST COLUMN CAP
$210.50
Engineered for robust structural support, this column cap by Simpson Strong-Tie is designed specifically for use with triple 2x beams and 6x posts, ensuring an ideal fit that meets the demands of your construction project. Crafted from 7-gauge steel, it provides exceptional strength and stability, with certified welds giving you confidence in its performance under load. The bolt spacing adheres to NDS code requirements, allowing for optimal functionality and peace of mind, while the diamond holes facilitate temporary fastening during assembly. Finished in a Simpson Strong-Tie gray paint, this cap is not only practical but also enhances the aesthetic appeal of your framework, making it a reliable choice for handling increased uplift loads due to earthquake or wind conditions.
Description
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 13 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Load Capacity | Increased Uplift for Earthquake or Wind |
| Bolt Spacing | Meets NDS Code Requirements |
