TRIPLE 2X BEAM, 6X POST SDS
$224.53

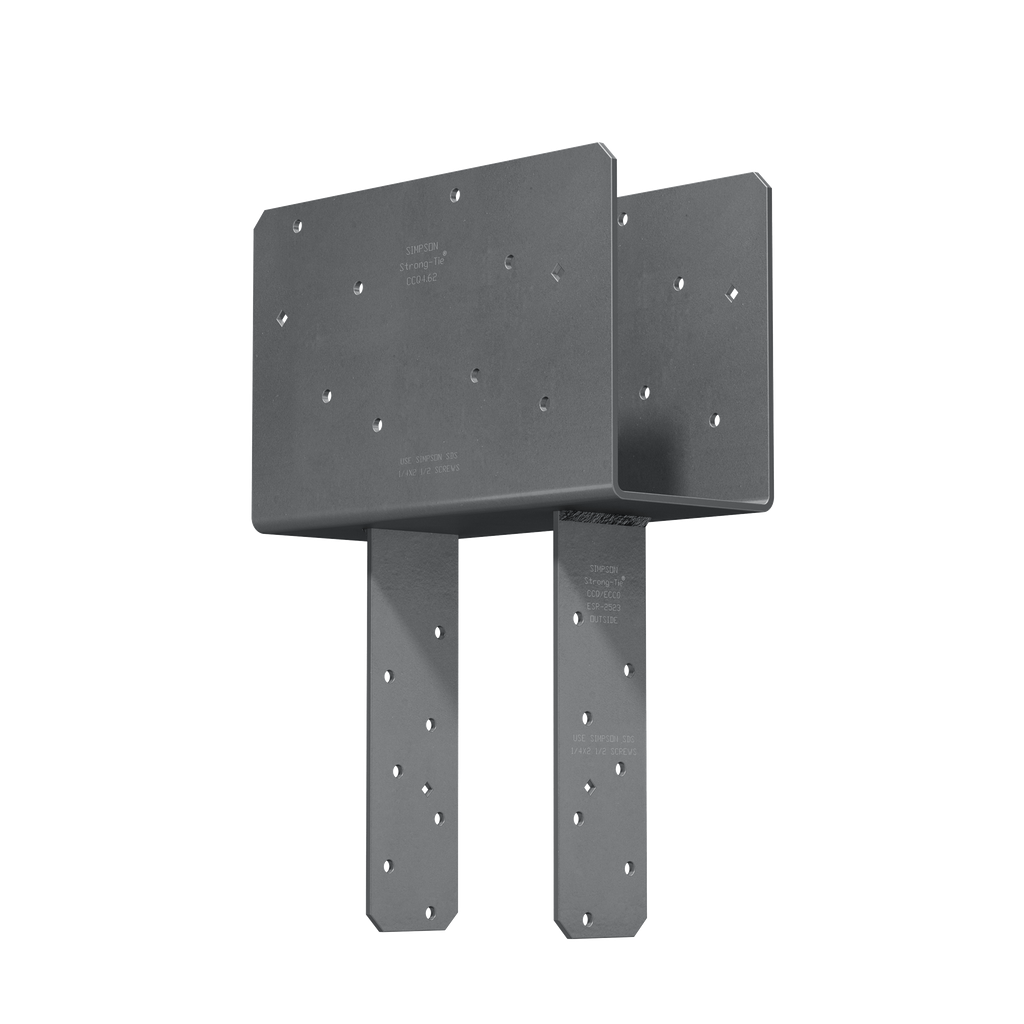

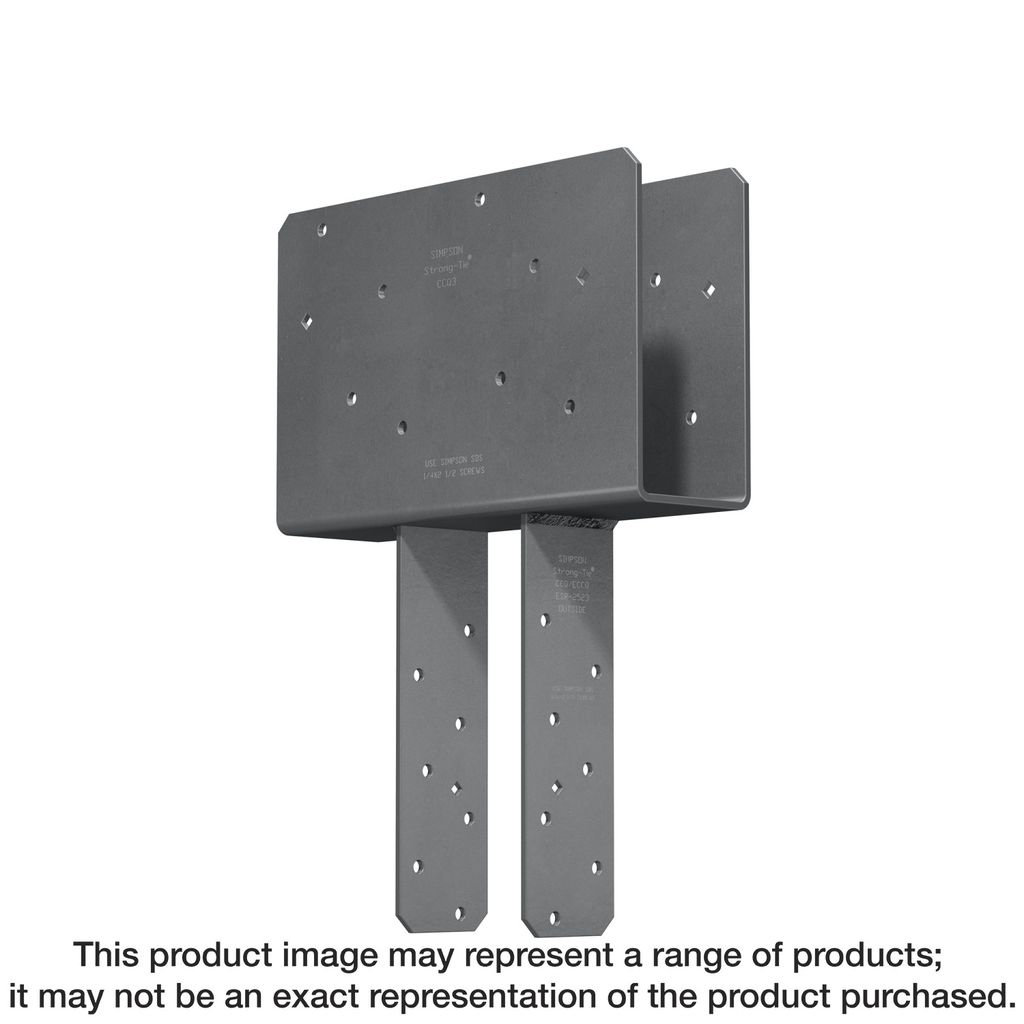

Engineered for optimal strength and reliability, the column cap from Simpson Strong-Tie is designed specifically for use with triple-2x beams and 6x posts. Its robust construction from 7-gauge steel ensures durability, while certified welds enhance confidence in its load-bearing capabilities, making it suitable for demanding applications such as earthquake or wind loading. Featuring a sleek Simpson Strong-Tie gray paint finish, this component not only performs well but also integrates seamlessly into your project. The design includes diamond holes for temporary fastening and utilizes Strong-Drive® SDS screws that boast a lower profile than conventional through bolts, promoting a clean, efficient assembly.
Description
The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional information
| Weight | 13.52 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Post Size | 6x |
| Beam Width | 4-1/2 in. |
