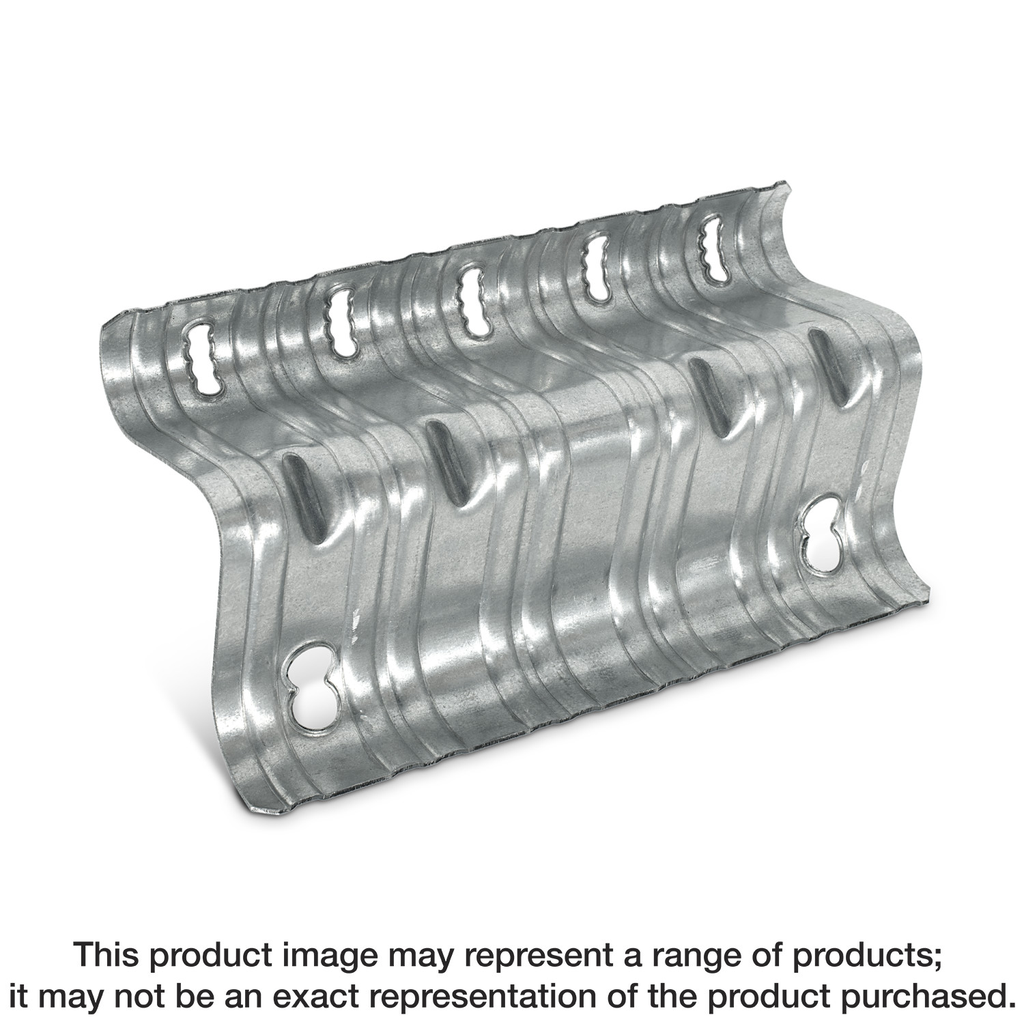

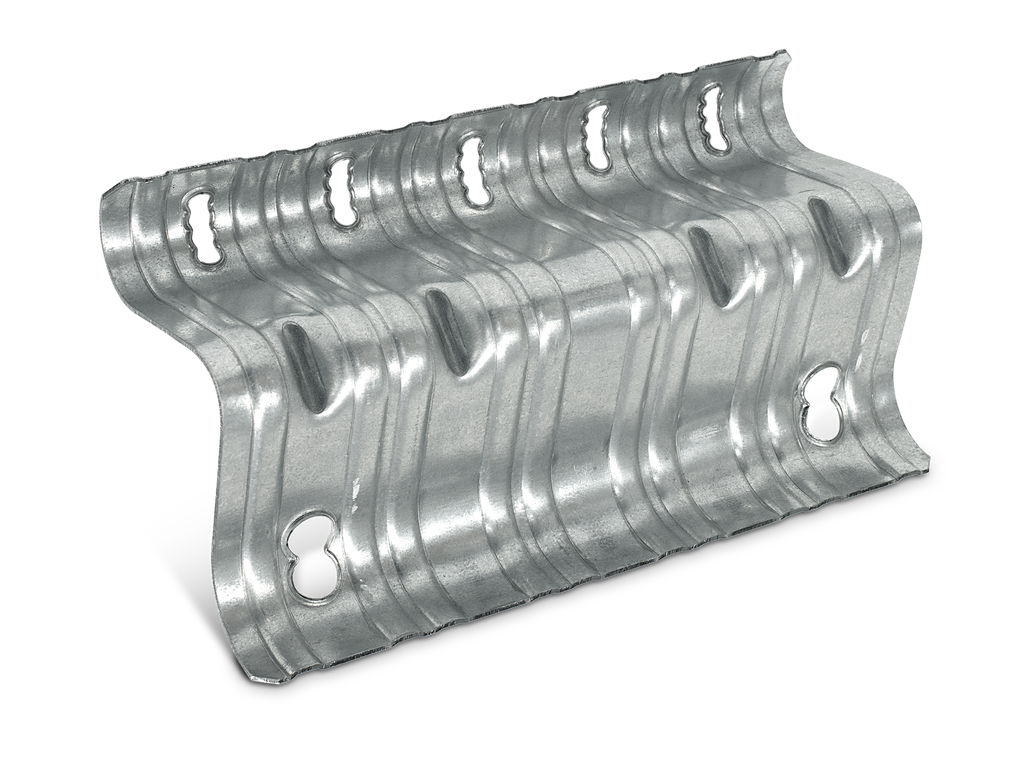

UNIVERSAL RETRO FOUND PLATE W/SDS HDG
$41.46
Engineered for robust performance, the Simpson Strong-Tie Universal Retro Foundation Plate is an excellent choice for various foundation types and mudsill positions. With its new, stiffer design, this plate serves as a one-for-one replacement for both 1/2 inch and 5/8 inch diameter anchor bolts, ensuring a secure connection. Constructed from 14-gauge steel and finished with hot-dip galvanization, it provides exceptional corrosion resistance, making it suitable for both exterior and treated wood applications. This versatile foundation plate also includes heavy-duty Strong-Drive screws, streamlining the installation process and enhancing the overall structural integrity of your project.
Description
Ideal where there is minimum vertical clearance, the URFP® universal retrofit foundation plate provides a retrofit method to secure the mudsill to the foundation. This design allows installation flexibility when the mudsill is offset or inset from the foundation edge. With its combination of longitudinal embossments, stiffening darts and scalloped slotted holes, the URFP allows for a one-for-one replacement of 1/2-in. or 5/8-in. mudsill anchors as well as fixity to both the SDS screws and required concrete anchorage.
Additional information
| Weight | 2.37 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 10.625 in |
| Width | 10-5/8 in |
