VARIABLE GIRDER TIEDOWN
$110.96

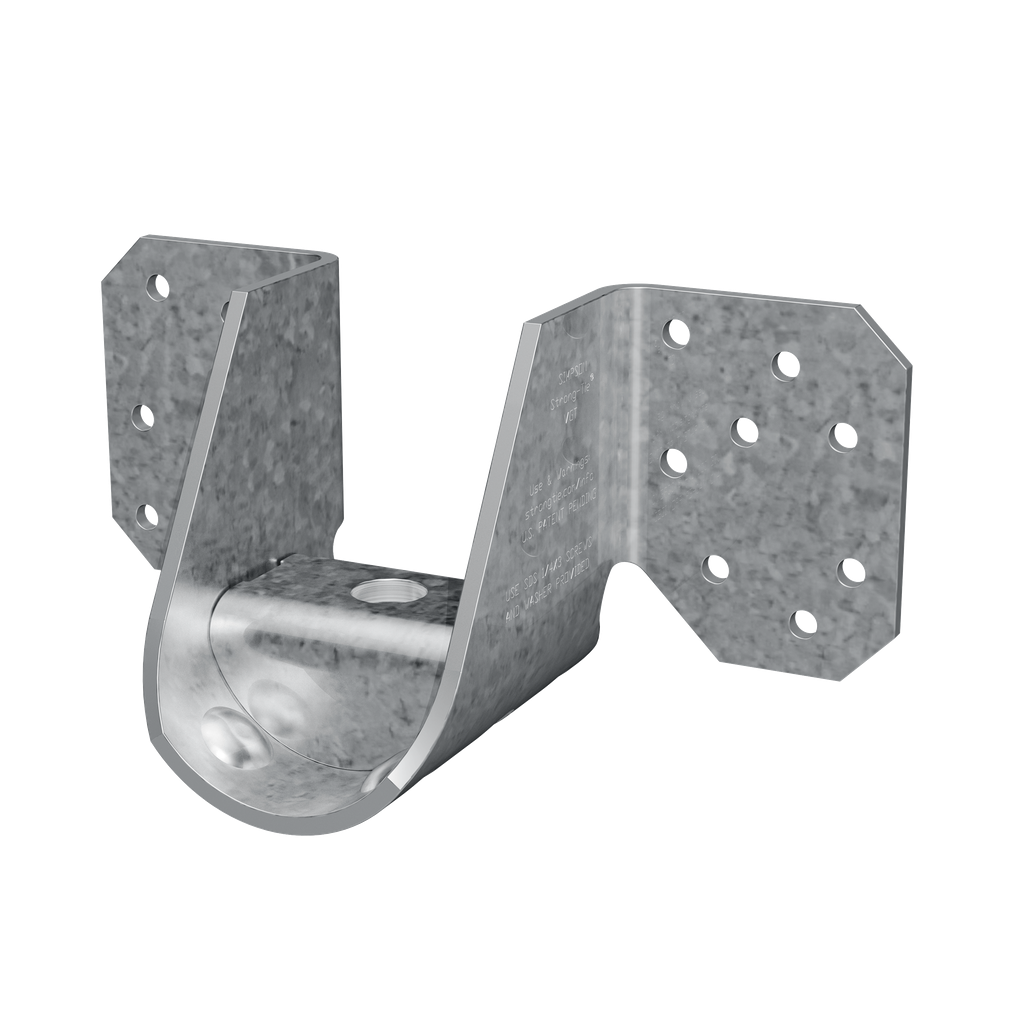

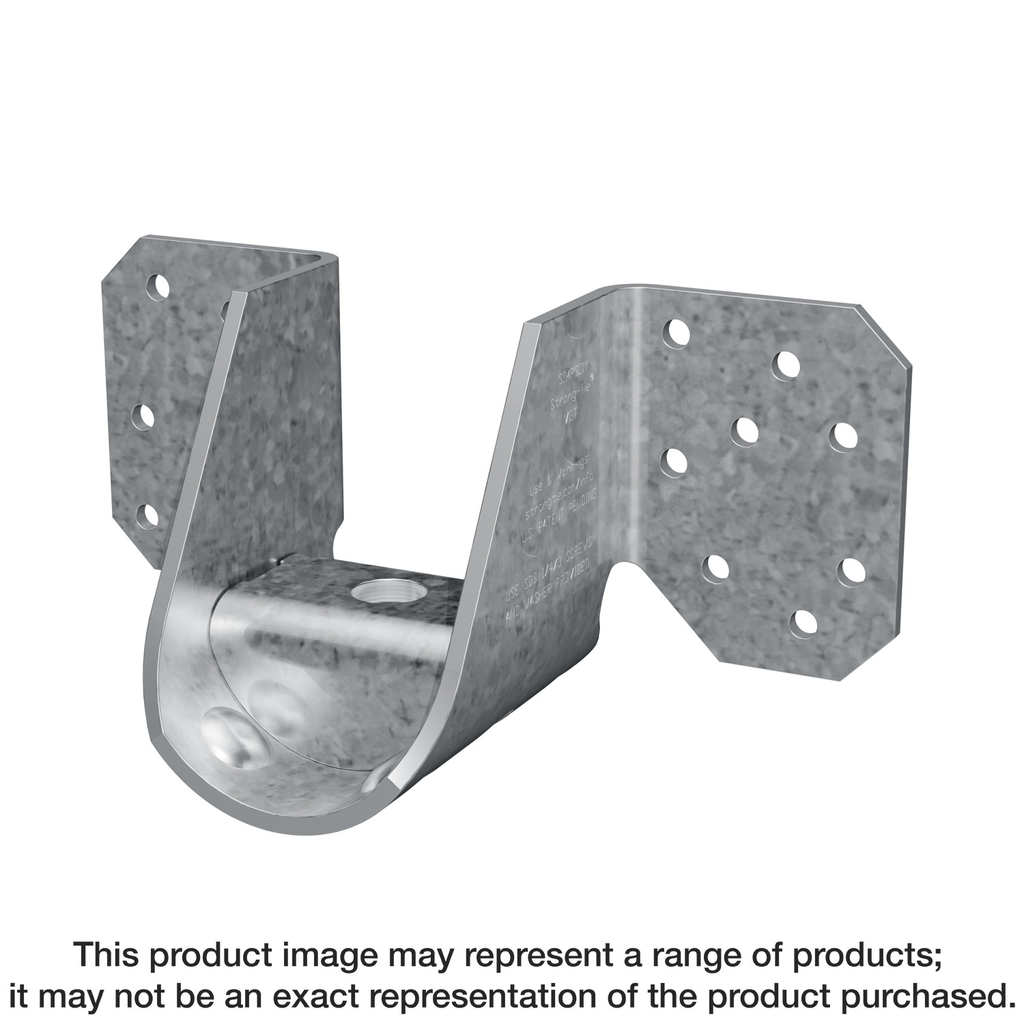

Crafted for robust structural support, the VGT 7-Gauge Variable Girder Tiedown from Simpson Strong-Tie is engineered to enhance the stability of trusses without overhangs. Made from durable 7-gauge steel, its design incorporates screw holes that accommodate double installation on minimum two-ply trusses, ensuring a secure fit. The included washer component must be carefully aligned to maintain a horizontal position, further contributing to effective load transfer on roof pitches of up to 8/12. With a G90 galvanized finish, this tiedown provides exceptional corrosion resistance, making it an ideal choice for long-lasting use in challenging environments.
Description
The Variable Girder Tiedown (VGT) is a higher capacity alternative to the LGT and MGT for girder trusses. It attaches with Simpson Strong-Tie Strong-Drive® screws (included) to the side of truss and features a predeflected crescent washer that allows it to accommodate top chord pitches up to 8/12. The VGT is also available with one flange concealed for attachment to trusses with no tail.
Additional information
| Weight | 3.67 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 8.46875 in |
| Gauge | 7 gauge |
