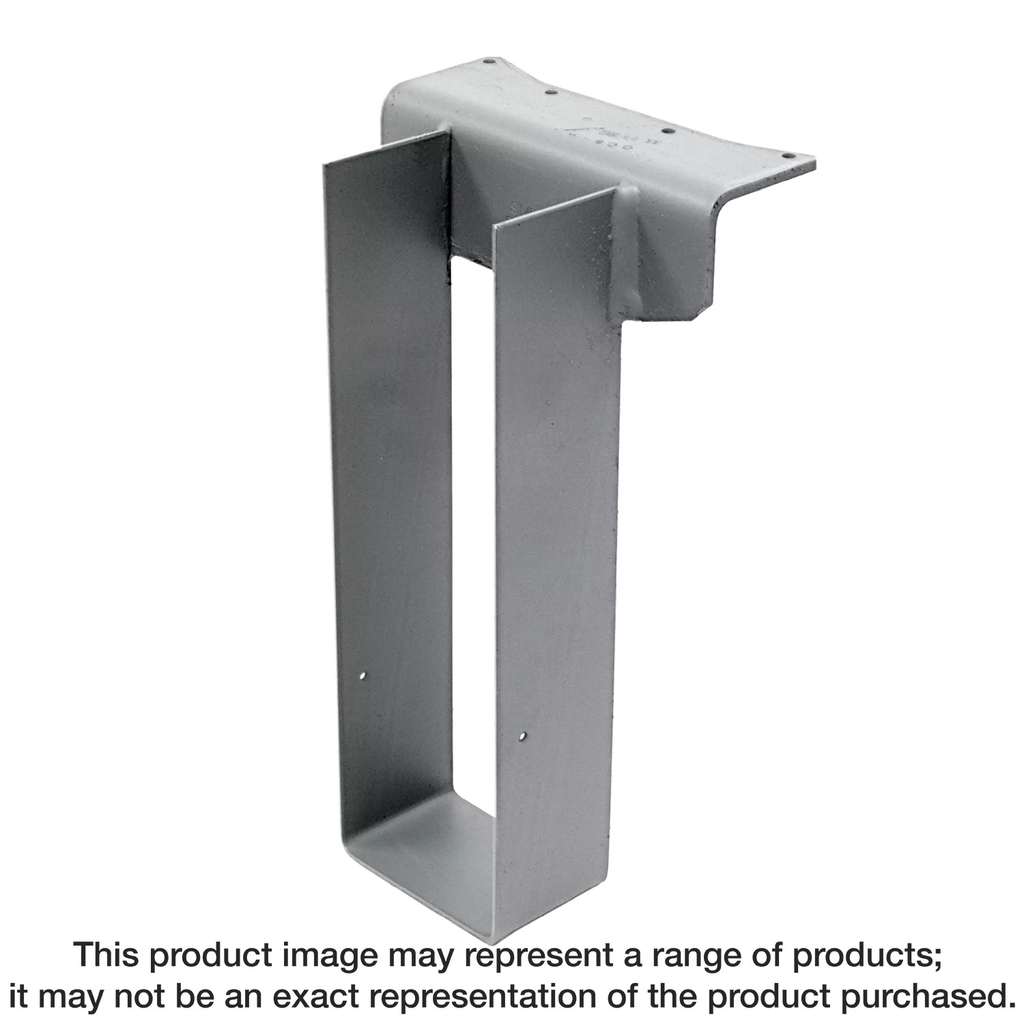

WELDED TOP FLANGE JOIST HANGER
$32.86
Engineered for strength and versatility, the WP Welded Top-Flange Joist Hanger accommodates double 2×10 joists, providing a robust solution for various construction needs. Crafted from high-quality materials, the 7-gauge steel top flange coupled with a 12-gauge stirrup ensures exceptional stability and durability, essential for panelized roof applications. Its unique design allows for a maximum slope of 35°, making it an excellent choice for projects that require adaptability to angled headers. Further enhancing its usability, this joist hanger offers modification options, including opened or closed top flanges and offset configurations, allowing builders to customize it based on specific requirements. With a solid, one-piece design and a protective gray paint finish, this hanger not only performs well but also integrates seamlessly into your construction projects.
Description
The WP is designed to support joists on purlins or beams and may be used for wood-to-wood or wood-to-steel applications. This top-flange hanger offers exceptional flexibility and versatility with the ability to be skewed up to 84° and/or sloped to a maximum of 45°. The WP is an economical choice with a low installed cost requiring a small number of nails for maximum downloads.
Additional information
| Weight | 3.07 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal joist size | Double 2×10 |
| Depth | 7 in |
