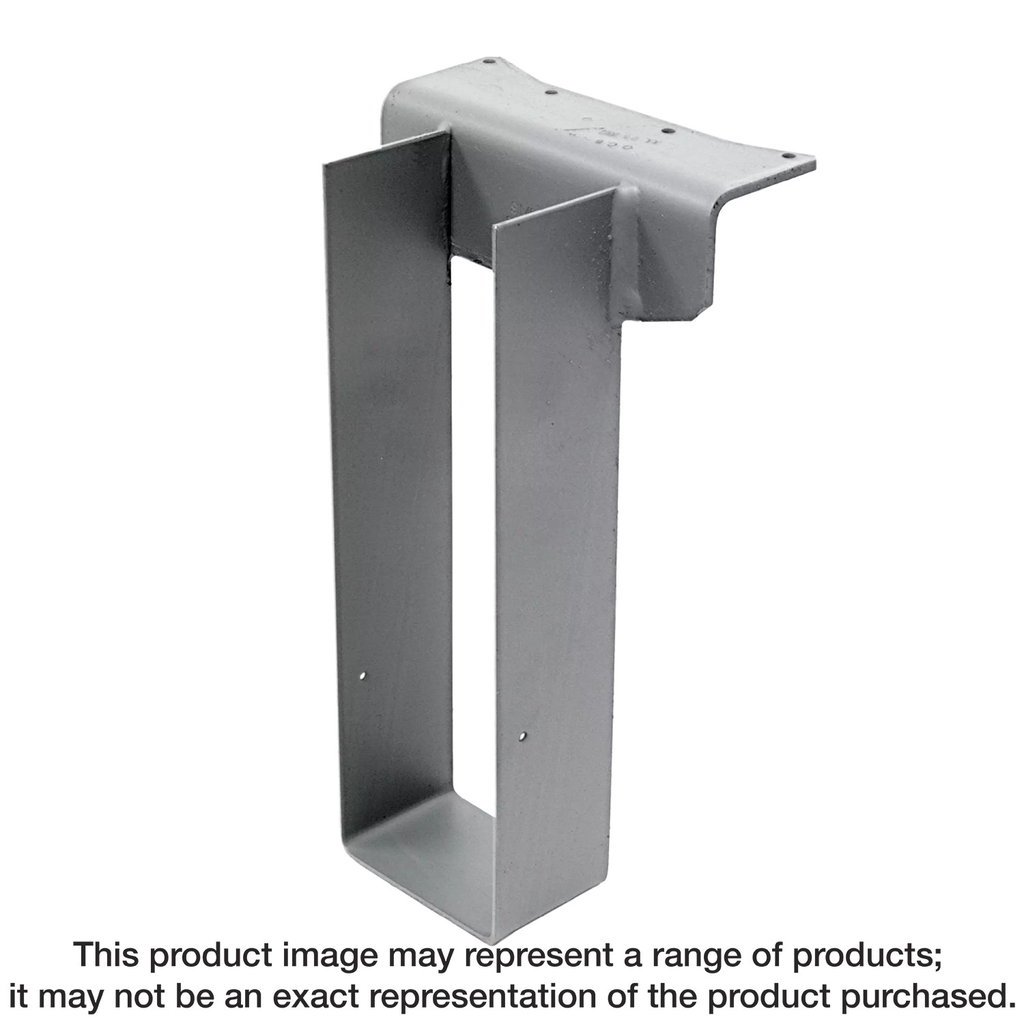

WELDED TOP FLANGE JOIST HANGER
$35.08
The WP Welded Top-Flange Joist Hanger from Simpson Strong-Tie is engineered to provide superior stability and support for double 2×12 joists, making it an ideal choice for panelized roof applications. Its solid one-piece top flange enhances structural integrity while offering highly customizable options such as opened or closed top flanges, as well as an offset design to suit various construction needs. Crafted from robust 7-gauge steel for the top flange and 12-gauge steel for the stirrup, this hanger is finished with a durable gray paint for added protection. Additionally, the top flange can be sloped up to 35 degrees, allowing for efficient installation with sloped headers, making it a versatile component for any framing project.
Description
The WP is designed to support joists on purlins or beams and may be used for wood-to-wood or wood-to-steel applications. This top-flange hanger offers exceptional flexibility and versatility with the ability to be skewed up to 84° and/or sloped to a maximum of 45°. The WP is an economical choice with a low installed cost requiring a small number of nails for maximum downloads.
Additional information
| Weight | 3.36 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Seat Width | 3-1/8 in. |
| Depth | 7 in. |
