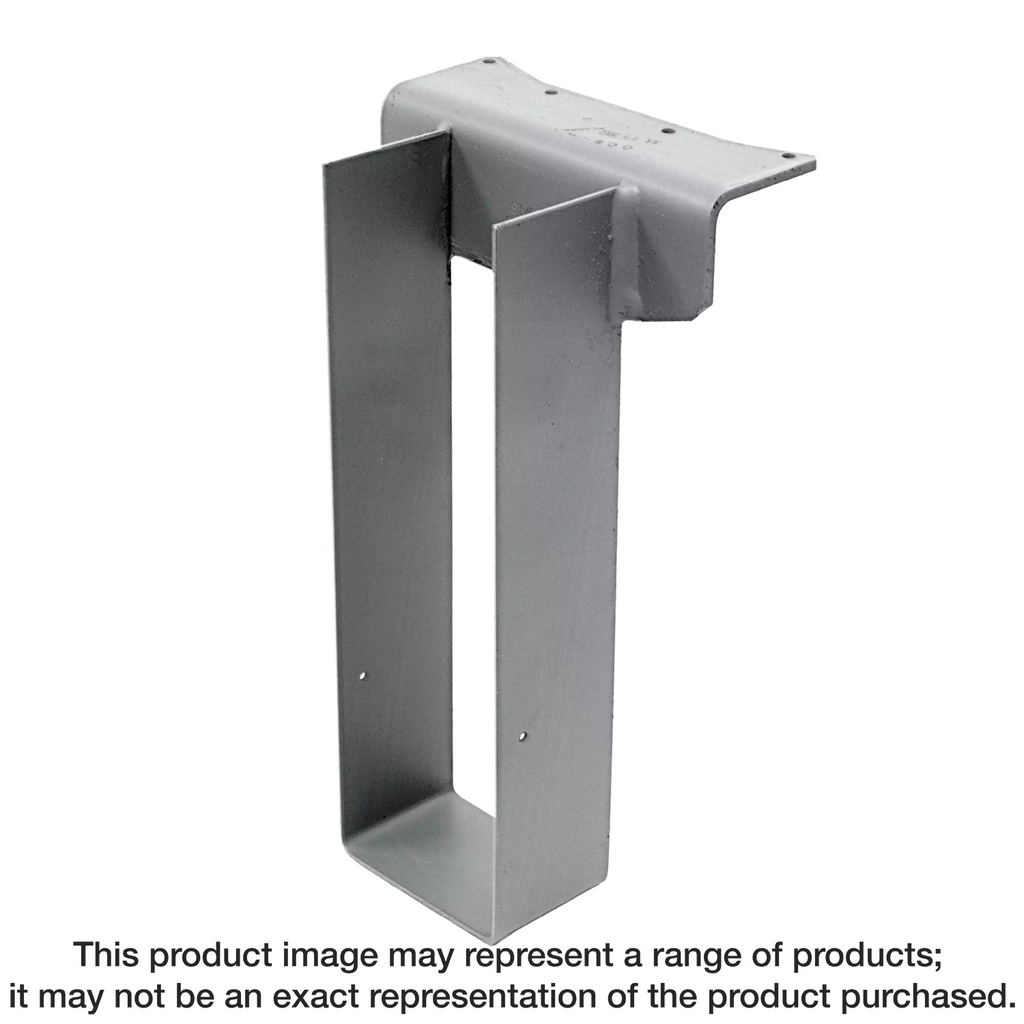

WELDED TOP FLANGE JOIST HANGER
$29.93
Engineered specifically for robust structural support, this welded top-flange joist hanger is crafted from high-quality steel, with a top flange made of durable 7-gauge material and a sturdy stirrup constructed from 12-gauge steel. The innovative design features a solid one-piece top flange, enhancing stability for panelized roof applications, and offers the versatility of sloping to a maximum of 35 degrees to accommodate various sloped headers. Finished with Simpson Strong-Tie’s signature gray paint, this hanger is not only functional but also integrates seamlessly into your projects. Its highly modifiable nature allows for alterations, such as opened or closed top flanges and offsets, making it an excellent choice for a variety of construction needs involving double 2×6 joists.
Description
The WP is designed to support joists on purlins or beams and may be used for wood-to-wood or wood-to-steel applications. This top-flange hanger offers exceptional flexibility and versatility with the ability to be skewed up to 84° and/or sloped to a maximum of 45°. The WP is an economical choice with a low installed cost requiring a small number of nails for maximum downloads.
Additional information
| Weight | 2.55 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | Double 2×6 |
| Maximum Slope | 35° |
