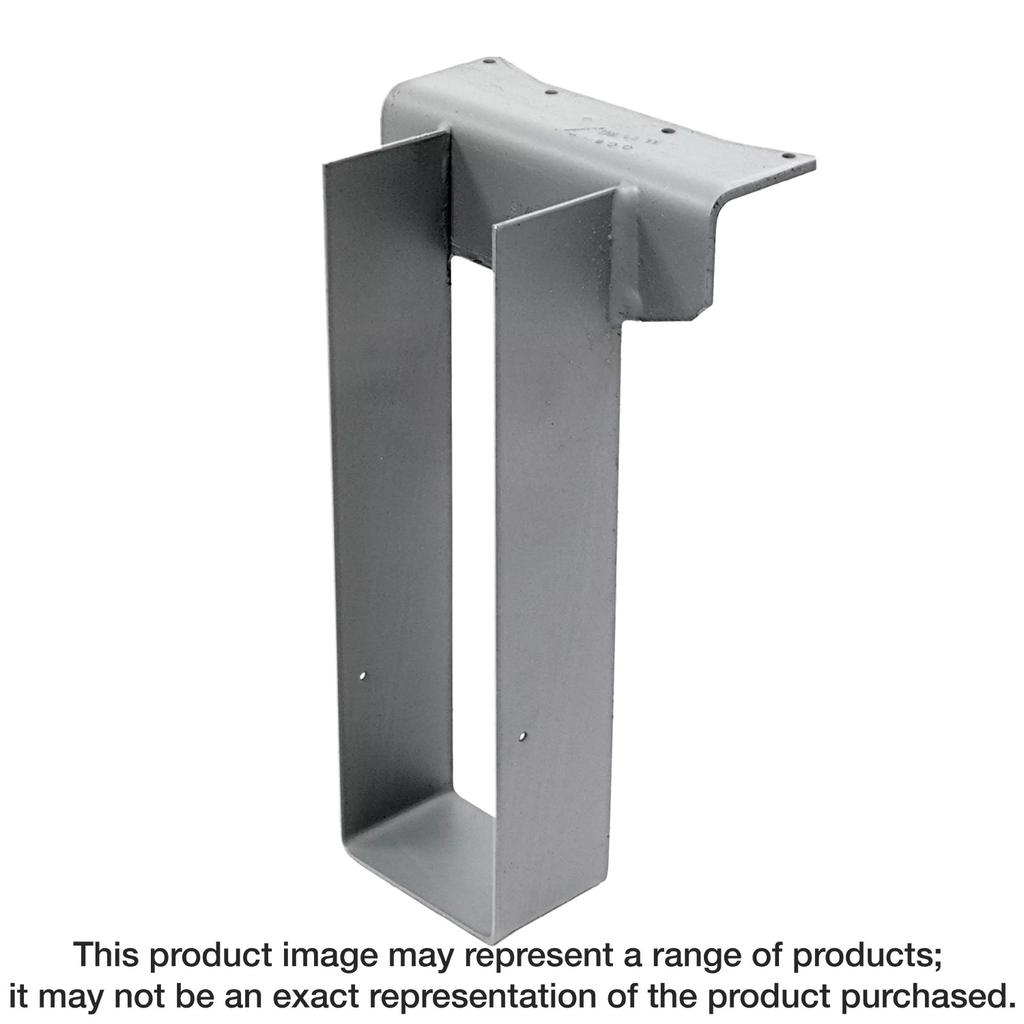

WELDED TOP FLANGE JOIST HANGER
$32.86
The WP welded top-flange joist hanger by Simpson Strong-Tie is a robust solution designed specifically for 6×6 joists. Crafted from 7-gauge steel for the top flange and 12-gauge steel for the stirrup, this hanger ensures exceptional stability, making it ideal for panelized roof applications. Its thoughtful design allows for a maximum slope of 35°, providing adaptability for various construction needs. Additionally, it offers a range of modification options, including an opened or closed top flange and an offset top flange, allowing for meticulous adjustments to fit your project requirements. Finished with Simpson Strong-Tie’s signature gray paint, this hanger not only delivers functionality but also integrates seamlessly into your building structure.
Description
The WP is designed to support joists on purlins or beams and may be used for wood-to-wood or wood-to-steel applications. This top-flange hanger offers exceptional flexibility and versatility with the ability to be skewed up to 84° and/or sloped to a maximum of 45°. The WP is an economical choice with a low installed cost requiring a small number of nails for maximum downloads.
Additional information
| Weight | 2.72 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 6×6 |
| Depth | 8 in |
