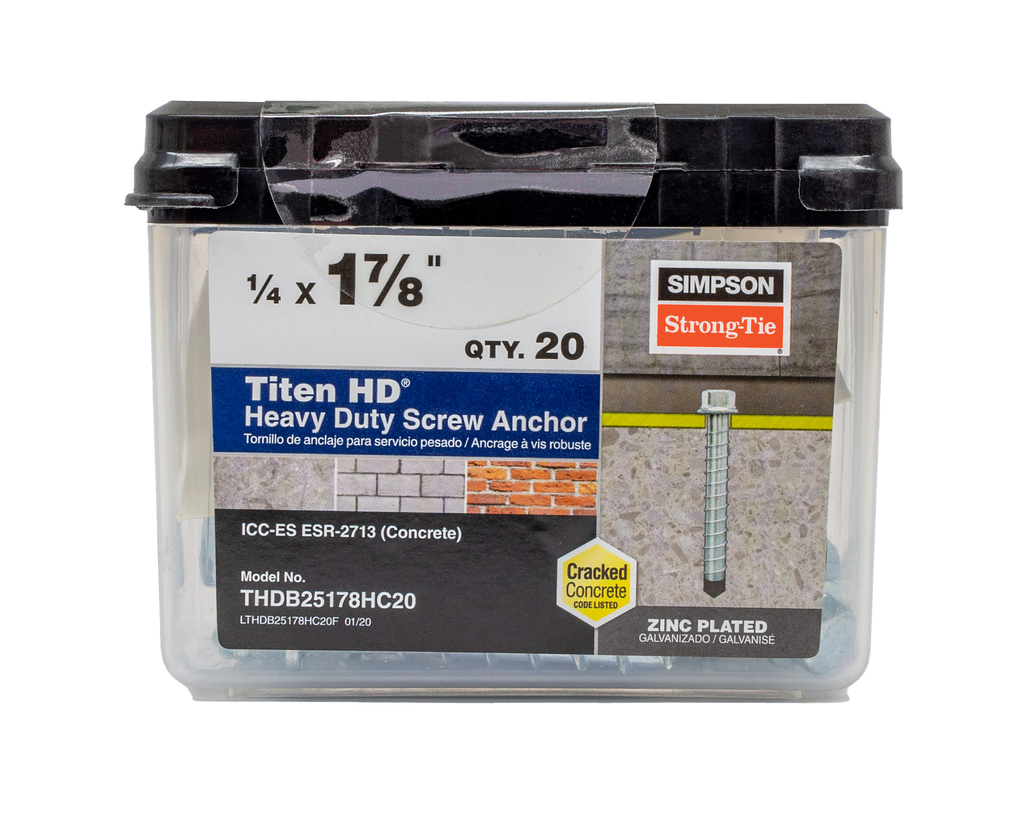

1/4 X 1-7/8″ TITENHD 20 PAC
$15.73

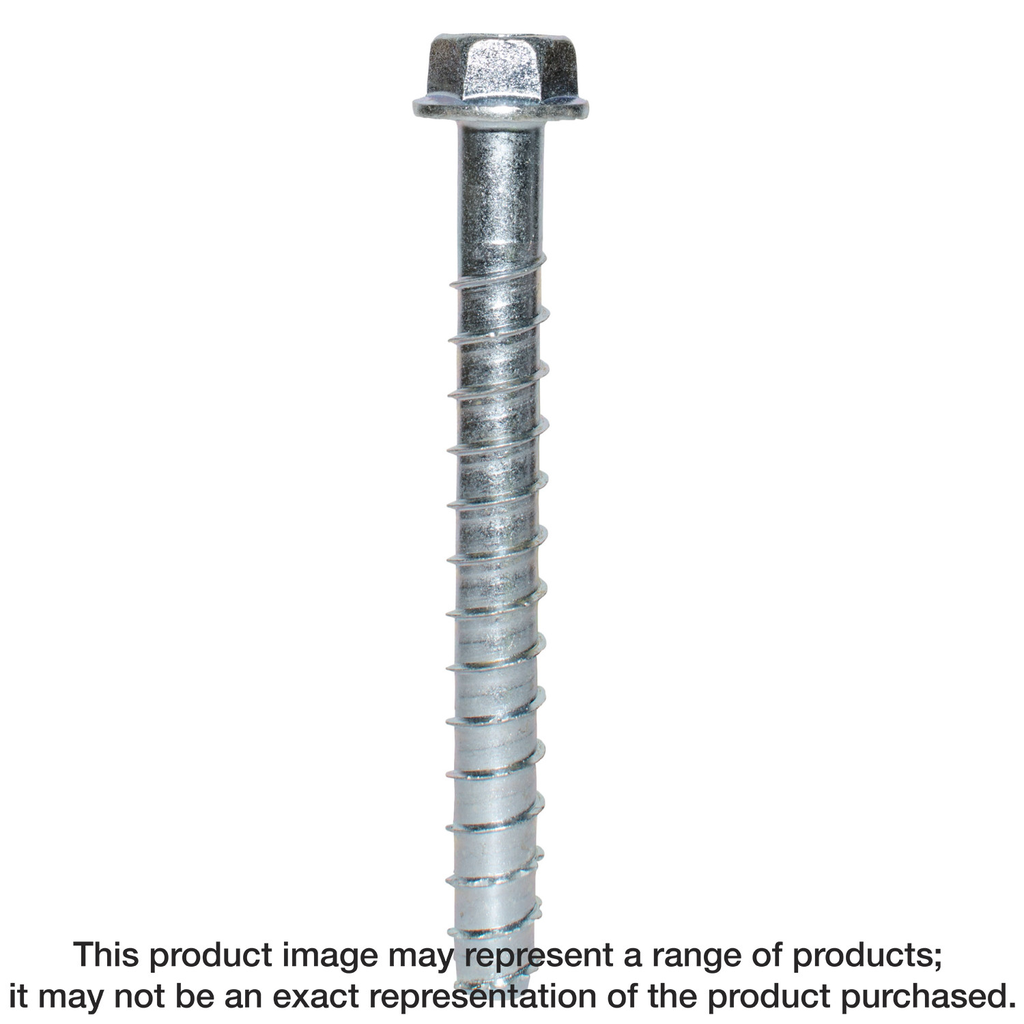

Engineered for robustness in a variety of applications, this heavy-duty screw anchor from Simpson Strong-Tie is qualified for both static and seismic loading conditions, making it a reliable choice for structural integrity. Crafted from zinc-plated carbon steel, these anchors are suitable for temporary exterior use and feature a unique thread design that efficiently transfers load to the base material, enhancing overall strength. The hex-washer head negates the need for a separate washer, providing a clean and streamlined installation appearance, while the innovative heat-treating process ensures tip hardness for effective cutting without compromising ductility. Designed to be installed with standard-sized ANSI tolerance drill bits, these anchors are practical and versatile; however, they should be used only once to maintain their load capacity and effectiveness.
Description
The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
Additional information
| Weight | 0.919 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 0.56 in |
| Size | 1/4 in. x 1-7/8 in. |
