1/4IN X 3IN COUNTERSUNK CRIMP DR MECHGLV
$59.20

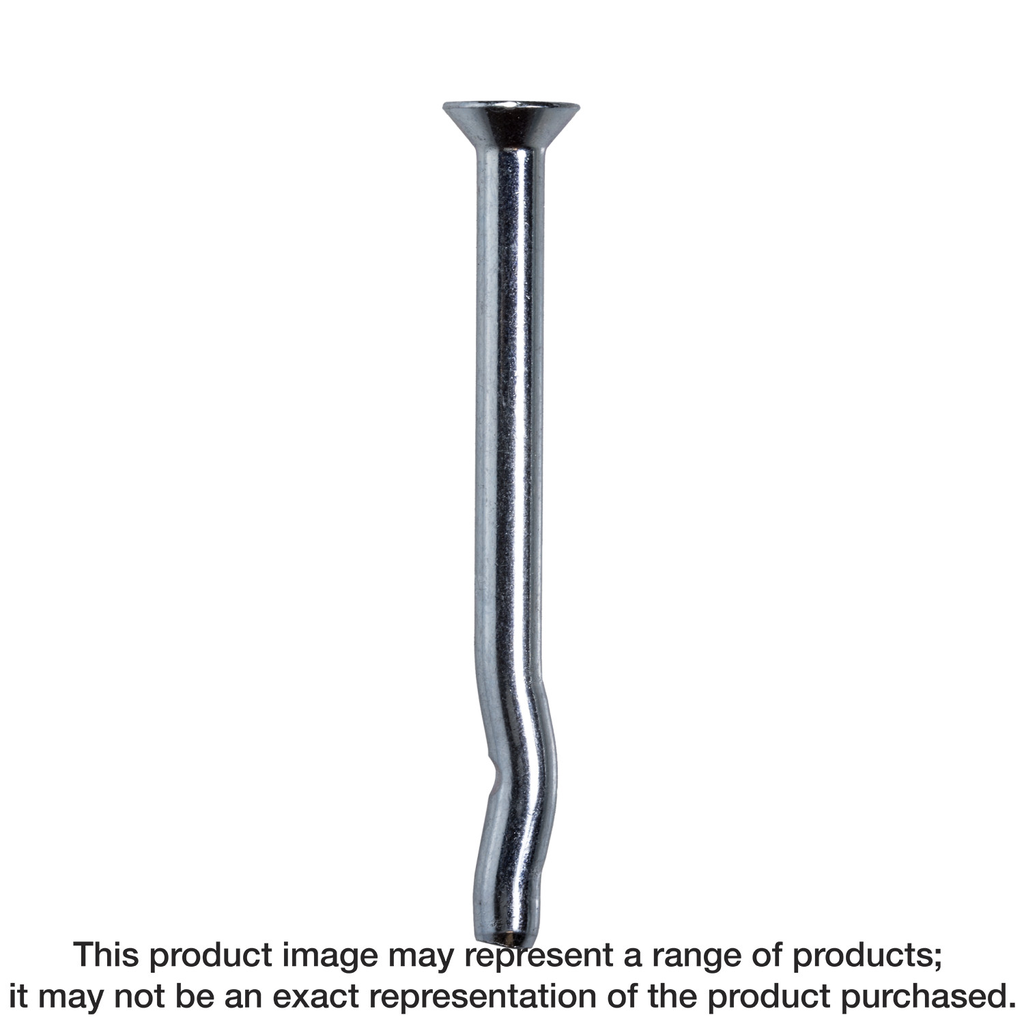

Engineered for streamlined installation and robust performance, the Crimp Drive® 1/4 in. x 3 in. mechanically galvanized countersunk head anchor from Simpson Strong-Tie features a unique curved shaft design that enhances secure placement. Its countersunk head ensures a zero-profile finish, eliminating the need for additional tightening and significantly speeding up the anchor installation process. Designed for specific applications involving pressure-treated wood sill plates, this anchor meets ASTM B695, Class 55, Type 1 standards, although it’s important to note that it is not intended for use in corrosive or outdoor environments. Please be aware of the potential health risks associated with this product, as it may expose users to crystalline silica.
Description
The Simpson Strong-Tie® Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The preformed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure. The anchor is available in five different head styles to handle different applications that include fastening wood or light-gauge steel, attaching concrete formwork, and hanging overhead support for sprinkler pipes or suspended ceiling panels.
Additional information
| Weight | 4.4 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 0.531 in |
| Size | 1/4 in. x 3 in. |
