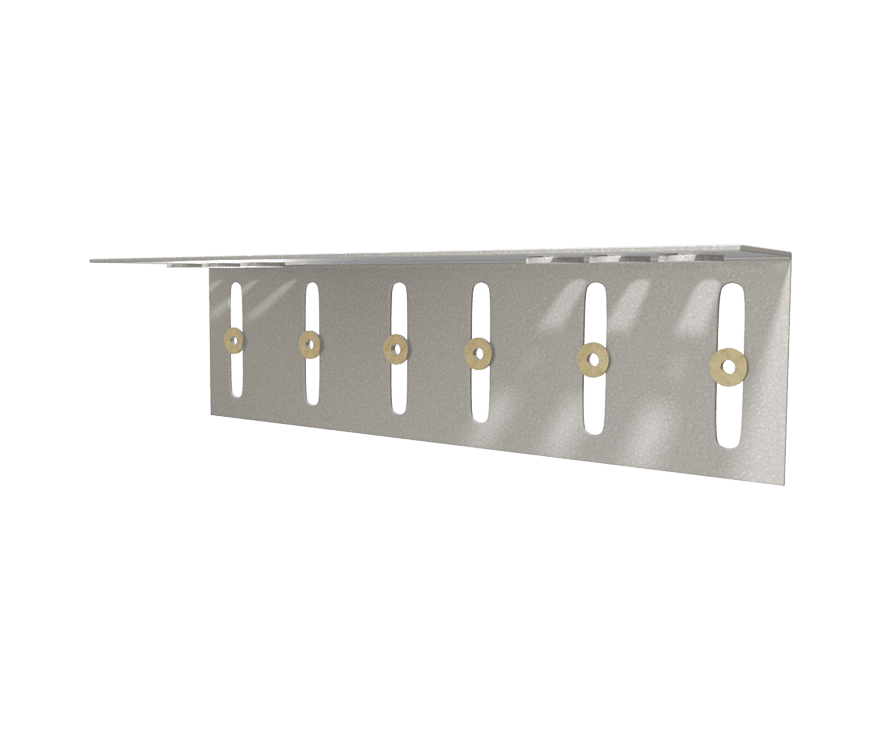

Steel Network DriftClip DSLS – Bypass Drift & Vertical Deflection Clip DSLS600-15 (Box of 25)
$912.00
This drift slide angle strut is used to connect exterior cold-formed steel curtain wall studs to structural steel frame when large stand-off conditions exist, bypassing the primary structure, while allowing for up to 2” vertical deflection (1” up and down) and 2” lateral drift (1” left and right-in-plane). TSN’s patented Step Bushing Technology provides an anti-friction and anti-seizure connection between the clip and both the stud web surface & track.
